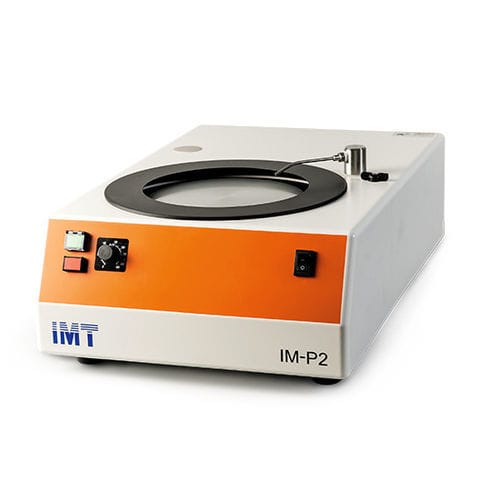

Metallographic sample polishing machine IM-P2

for metalsgrindingbuffing

Product Description
IM-P2 is a manual two-disc polisher designed for table-height operation to facilitate comfortable manual polishing. It can be automated by installing the Holder Rotation Device SP-L1. Disc replacement is quick and simple. The machine provides high torque across a wide adjustable speed range, making it suitable for grinding and polishing tasks.

Main Specifications

• Table-height design for ergonomic manual operation
• High torque at low and high rotation speeds, adjustable from 50 to 400 rpm
• Simple and fast disc replacement

IM-P2 Machine Specifications
Disc sizes: Grinding disc φ223 mm / 200 mm / 250 mm; Polishing disc φ200 mm / 250 mm; Magnetic disc φ200 mm / 250 mm (discs sold separately)
Rotation speed: 50–400 rpm, adjustable (50/60 Hz common)
Water supply/drain: Water supply cock with attached supply/drain hose
Power supply: Single-phase 100 V 50/60 Hz or single-phase 200–220 V 50/60 Hz; 200 W geared motor
Dimensions/Weight: W390 × D655 (to drainage opening) × H195 mm / 31 kg

Features / Technical specifications

• Model: IM-P2 (manual two-disc polisher; can be automated with Holder Rotation Device SP-L1)
• Disc compatibility: Grinding φ223/200/250 mm; Polishing φ200/250 mm; Magnetic φ200/250 mm (sold separately)
• Speed control: 50–400 rpm, adjustable
• Power: Single-phase 100 V or 200–220 V, 50/60 Hz; 200 W geared motor
• Water handling: On/off water supply cock with attached hose for supply/drain
• Dimensions: W390 × D655 × H195 mm (to drainage opening); Weight: 31 kg
• Design: Table-height layout for comfortable manual polishing and easy disc replacement; consistent high torque at low and high speeds
