Custom rotating unit SP-As series

flat

Product Summary

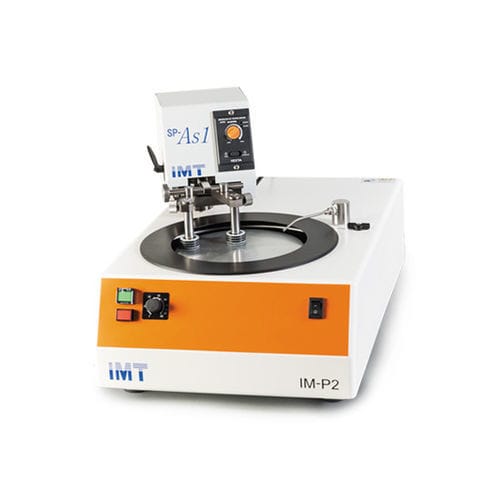

SP-As1/As2 is a roller-type specimen rotating unit designed to attach to the IM-P2 polishing machine. It enables automatic polishing of non-mounted specimens, especially for lengthy, low-speed lapping. Custom-made holders for specific specimen shapes are available.

Main Specifications

• Built-in oscillation function: Arm-integrated oscillation reduces grinding resistance and edge undercutting, promotes even polishing across the specimen surface and allows polishing with light pressure to extend polishing cloth life.
• Automatic polishing of non-mounted specimens: Compatible with the IM-P2 for unattended, long-duration low-speed lapping. Custom holders can be supplied for specific specimen geometries.
• Loading plate options (optional):
  • Cast iron lapping plate φ200–250mm — for slurries ≤ 6 μm
  • Copper lapping plate φ200–250mm — for slurries 3–15 μm
  • Tin lapping plate φ200–250mm — for slurries ≥ 6 μm
  • Diamond correction ring — surface plate flatness correction

Machine Specifications
Adapted holder size: Approx. φ70mm to 125mm
Oscillation speed: 2–40 full oscillations/min (adjustable)
Power supply (SP-As): Single-phase 100V or single-phase 200–220V (use IM-P2 outlet)
Dimensions/Weight (with IM-P2): W410×D655×H390mm, 39kg
Oscillation width: Adjustable between 8° and 16°
Oscillation position adjustment: Center position configurable
Specimen-holding arm: Adjustable between 0° and 40°
Timer: Optional (attachable to IM-P2, auto-stop)

IM-P2 Machine Specifications
Disc size: Polishing or magnetic disc φ200mm or φ250mm (discs sold separately)
Rotation speed: 50–400 rpm (adjustable; 50/60Hz common)
Supply/drain water: Water supply cock with attached hose for supply/drain
Power supply: Single-phase 100V 50/60Hz or single-phase 200–220V; 200W geared motor
Dimensions/Weight: W390×D655 (to drainage opening)×H195mm / 31kg

Technical specifications

• Model: SP-As1/As2
• Type: Roller-type specimen rotating unit (attaches to IM-P2)
• Primary use: Automatic polishing of non-mounted specimens; suited for lengthy, low-speed lapping
• Optional loading plates: Cast iron, copper, tin (φ200–250mm); diamond correction ring available
• Adapted holder size: Approx. φ70mm–125mm
• Oscillation speed: 2–40 oscillations/min (adjustable)
• Oscillation width: Adjustable 8°–16°
• Oscillation position: Center position configurable
• Specimen-holding arm adjustment: 0°–40°
• Power supply (SP-As): Single-phase 100V or 200–220V (use IM-P2 outlet)
• Dimensions/weight (with IM-P2): W410×D655×H390mm, 39kg
• IM-P2 disc size: φ200 or φ250mm
• IM-P2 rotation speed: 50–400 rpm
• IM-P2 power supply: Single-phase 100V 50/60Hz or 200–220V; 200W geared motor
• IM-P2 dimensions/weight: W390×D655 (to drainage opening)×H195mm / 31kg
