Metal polishing machine Rana-3

for specimen preparationindustrialgrinding

Description

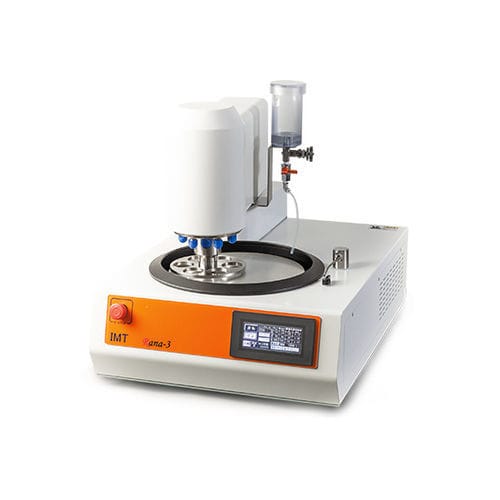

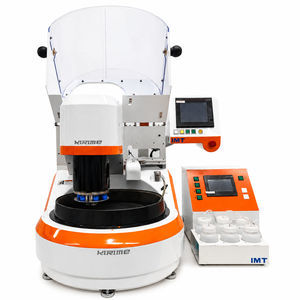

The Rana-3 is an automatic disc polishing machine with an individual-load system that accepts 1 to 6 specimens. The holder rotation speed is adjustable so the holder and disc can run at the same speed and direction to avoid loss of parallelism; both holder and disc support forward and reverse rotation.

Main Specifications

• Polish without losing parallelism! When holder and disc rotate at the same speed and in the same direction, grinding and polishing maintain parallelism across workpieces. Rana-3 allows holder speed adjustment so grinding/polishing can be performed at equal speeds and same direction. Disc and holder rotation can be reversed to facilitate manual finishing for left-handed operation.

  Grinding: SiC paper or polishing pad — Disc rotation speed: 200 rpm / Holder: 200 rpm
  Fine polishing: DIA + polishing cloth — Disc rotation speed: 65 to 150 rpm / Holder: 65 to 150 rpm
• Automatically increase/reduce pressure for the set number of seconds Rana-3 can automatically ramp pressure up or down over a configured number of seconds from start; settings allow gradual increase or decrease at defined times.
• Change polishing conditions (pressure, rotation speed) in two steps! Two movement/condition steps can be programmed into a single process to adapt to fragile or sharp-edged materials: start at lower pressure/speed and switch to higher pressure/speed during the cycle.
• Memory for up to 16 polishing conditions! Up to 16 programs can be stored. Different conditions can be assigned when preparing multiple specimens to improve throughput.

Machine Specifications
Power Supply
Single-phase 100V, 50/60Hz or single-phase 200–220V; 3-phase 200–220V, 50/60Hz; single-phase 220V

Dimensions / Weight
W450 × D460 (to the back) × H500 mm (690 mm when the head is lifted) / 65 kg

Polishing Area
Disc Size
Grinding disc: φ250 mm; Polishing disc: φ250 mm; Magnetic disc: 250 mm (discs sold separately)
Disc Rotation Speed
50 to 400 rpm (forward/reverse switchable)
Motor Output
400 W (100/200V: geared motor)
Operation
Waterproof touch panel, emergency stop button; digital automatic stop by timer; storage of up to 16 polishing programs; ABC setting (3 configurable polishing steps)
Supply / drain water function
Opening/closing of water supply cock (attached water supply/drain hose)

Specimen Rotation Area
Holder Rotation
50 to 200 rpm (forward/reverse switchable)
Motor Output (Holder)
AC 120 W brushless motor
Number of Specimen
Selectable from 1 to 6 (max. 3 with φ50 mm)
Specimen Holder
25, 30, 40, 50 mm; inch diameters; custom sizes available (holders sold separately)
Applied Pressure
10 to 50 N per specimen
Lubricator
Standard accessory (analog flow-rate adjustment type)
Primary Air Source
Required 0.5 to 0.7 MPa (separate regulator required for sources above 0.7 MPa)

Technical specifications

• Model: Rana-3
• Power supply: Single-phase 100V, 50/60Hz or single-phase 200–220V; 3-phase 200–220V, 50/60Hz; single-phase 220V
• Dimensions: W450 × D460 (to the back) × H500 mm (690 mm with head lifted)
• Weight: 65 kg
• Disc size: φ250 mm (grinding / polishing); magnetic disc 250 mm
• Disc rotation speed: 50–400 rpm (forward/reverse switchable)
• Disc motor output: 400 W (geared motor)
• Holder rotation: 50–200 rpm (forward/reverse switchable)
• Holder motor output: AC 120 W brushless motor
• Number of specimens: 1–6 selectable (max. 3 with φ50 mm)
• Specimen holder sizes: 25, 30, 40, 50 mm; inch diameters and custom sizes available (holders sold separately)
• Applied pressure: 10–50 N per specimen
• Lubricator: Standard accessory, analog flow-rate adjustment type
• Primary air source: Required 0.5–0.7 MPa (separate regulator for >0.7 MPa)
• Operation features: Waterproof touch panel, emergency stop, digital timer stop, storage up to 16 polishing programs, ABC setting (3-step configurable)
• Special functions: Automatic pressure ramping over set seconds; two-step programmable polishing conditions; holder and disc reversible rotation; adjustable holder speed to maintain parallelism
