Metallographic sample polishing machine Q-roy

for metalsfor specimen preparationindustrial

Product overview

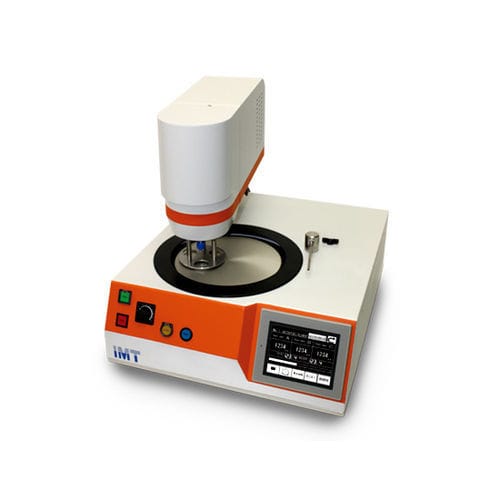

Compact automated polishing machine designed for individual Z-axis removal control on up to three specimens. Removal value can be set in 1 μm increments; machine supports automatic stop by removal value or by time, and offers intuitive operation via touch panel and analog controls.

Key features

• Individual Z-axis removal per specimen: Set directional removal (Z) independently for each of three specimens; removal range 5 μm–5 mm per specimen, up to H20 mm, 1 μm resolution. Polishing of remaining specimens continues when one specimen reaches its set removal value.
• Timed polishing mode: Polishing can be controlled by time; two different movements can be programmed into a single process.
• Abrasive Auto Drip compatibility: Optional abrasive auto drip device enables automated finish polishing without operator intervention.
• Runout offset correction: Offset function corrects grinding errors caused by disk runout or buff elasticity by inputting disk surface runout in advance.

Machine specifications

• Disc size: High-precision grinding disc φ223 mm or φ200 mm; high-precision polishing disc φ200 mm; magnetic disc φ200 mm (discs sold separately).
• Polishing function: Individual-load polishing for up to 3 specimens (φ25 / 30 / 40 mm standard; custom sizes available; holder sold separately).
• Rotation speed: Disc 50–300 rpm (reversible); Holder 50–200 rpm.
• Applied pressure: Individual load 5–30 N per specimen.
• Operation: Touch panel + analog buttons + rotation speed knob; selectable auto-stop by removal value or by time; automatic water supply Start/Stop + analog water button.
• Removal values: 5 μm–5 mm per specimen (1 μm unit); up to H20 mm setting; grinding up to 5 mm.
• Head mechanism: Head lowering/raising; manual polishing possible when head is lifted.
• Air source: 0.5–0.7 MPa (separate regulator required for >0.7 MPa).
• Motor output: Head 60 W brushless motor; Base 120 W brushless motor.
• Power supply: Single-phase 100 V or single-phase 220 V.
• Dimensions & weight: W480 × D670 (to drain) × H500 mm (H650 mm when head raised); 45 kg.

Technical specifications

• Model name: Q-roy
• Disc compatibility: φ223 mm, φ200 mm (grinding / polishing / magnetic discs)
• Specimen capacity: Up to 3 specimens (φ25 / 30 / 40 mm standard; custom sizes available)
• Removal resolution & range: 1 μm unit; 5 μm–5 mm per specimen; up to H20 mm
• Rotation speed: Disc 50–300 rpm (reversible); Holder 50–200 rpm
• Applied pressure: 5–30 N per specimen (individual load)
• Motors: Brushless head motor 60 W; base motor 120 W
• Operation interface: Touch panel + analog buttons + rotation speed knob; selectable auto-stop modes (removal value or timed)
• Air supply: 0.5–0.7 MPa (higher requires separate regulator)
• Power: Single-phase 100 V or 220 V
• Weight & dimensions: 45 kg; W480 × D670 × H500 mm (H650 mm when head raised)
