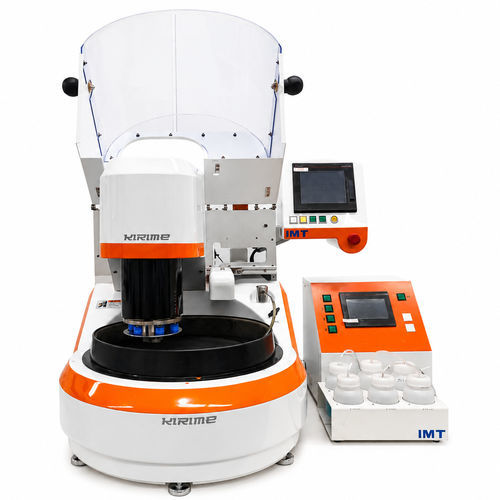

Metal polishing machine KIRIME

for metallographic samplesindustrialfinishing

Overview
Two polishing styles (Total load system / Individual load system) with one machine. The unit can create an auto-change recipe by selecting up to six stored conditions. Communication with an abrasive auto-drip device is supported (special wiring required).

Main Specifications

• Select from two polishing styles — Total load system provides high polishing force; production using special holders is possible with the Individual load system, which uses pressurized legs. Up to six specimens can be mounted.
• Disc cooling function included — Coolant is emitted during polishing to cool the disc.
• Auto-drip polishing liquid for automated processing — Interface with abrasive auto-drip device is available; order wiring/accessories at purchase.

Polishing Area
Disc Size: Grinding disc φ250 mm, φ305 mm; Polishing disc φ250 mm, φ300 mm; Magnetic disc φ250 mm, φ300 mm (discs sold separately).
Polishing Function: Total-load or individual-load polishing.
Rotation Speed: Disc 50–500 rpm (forward/reverse switchable); Holder 50–200 rpm (forward/reverse switchable).
Number of Specimens: Total load: 6‑pc specimen holder with tear-shaped holes, 3‑pc holder with rectangular holes, etc. Individual load: up to 6 specimens φ25/30/40 mm, or 3 specimens φ50 mm; custom holders available (sold separately).
Applied Pressure: Total load 50–300 N; Individual load 10–50 N.
Operation: Touch panel + analog buttons. Operation panel is movable on an arm. Total-load recipe slots: 16; Individual-load: 16; Auto-change recipe: up to 16 stored.
Coolant: Automatic water supply start/stop; disc cooling function included.
Primary Air Source: Required 0.5–0.7 MPa (separate regulator required for >0.7 MPa).
Motor Output: Head 200 W servo motor; Base 750 W servo motor.
Power Supply: 3-phase 200–220 V.
Dimensions/Weight: Information not specified on page.

Features / Technical Specifications

• Model name: KIRIME
• Polishing styles: Total load system or Individual load system
• Disc sizes (examples): Grinding φ250 mm, φ305 mm; Polishing φ250 mm, φ300 mm; Magnetic φ250 mm, φ300 mm
• Polishing function: Total-load or individual-load polishing
• Rotation speeds: Disc 50–500 rpm; Holder 50–200 rpm (both forward/reverse switchable)
• Specimen capacity: Up to six (various holder configurations available)
• Applied pressure: Total load 50–300 N; Individual load 10–50 N
• Operation interface: Touch panel + analog buttons; movable operation panel arm
• Recipe storage: Total load 16, Individual load 16, Auto-change up to 16
• Coolant: Automatic water supply and disc cooling
• Primary air source: 0.5–0.7 MPa required (separate regulator for >0.7 MPa)
• Motor output: Head 200 W servo; Base 750 W servo
• Power supply: 3-phase 200–220 V
