Flat rotating unit SP-L1

Product description

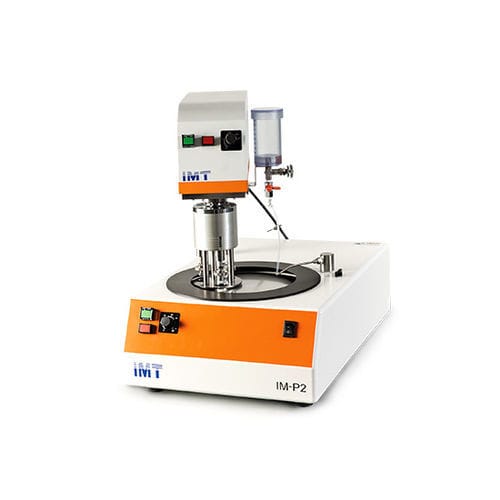

SP-L1 is a specimen holder rotation device designed to attach to the IM-P2 polishing machine. When mounted on IM-P2, SP-L1 enables semi-automatic polishing of pressed specimens. Adjustable holder rotation speed ensures the holder and disc can be synchronized to preserve specimen parallelism during grinding and polishing.

Main specifications

• Individual load system: Allows removing specimens individually as each reaches a target grinding position (e.g. via reference holes). Up to three specimens can be installed simultaneously.
• Preserve parallelism: By matching holder and disc rotation speeds and direction, the system minimizes tilting of the polishing surface and prevents conical or pencil-shaped material removal. Recommended example speeds — coarse polishing: disc 200 rpm / holder 200 rpm; fine polishing: disc 65–150 rpm / holder 65–165 rpm.
• Semi-automatic polishing with lubricator included: Attaching SP-L1 to IM-P2 enables automatic polishing cycles. A lubricator with adjustable drip rate and open/close valve is supplied as standard.

SP-L1 Specifications
Rotation speed: 0 to 200 rpm, adjustable
Number of specimens: selectable from 1 to 3
Applied pressure: 10 to 40 N per specimen (spring-type individual load)
Specimen holder: ø25 mm, ø30 mm, or ø40 mm × 3 positions; custom sizes available; holder sold separately
Lubricator: standard accessory (analog flow-rate adjustment)
Power: single-phase 100 V or single-phase 220 V; plugs into IM-P2 outlet; 75 W motor
Dimensions / Weight: W460 × D655 × H550 mm (685 mm when head lifted) / 50 kg (values with IM-P2 installed)

IM-P2 Machine Specifications
Disc sizes: grinding disc ø223/200/250 mm; polishing disc ø200/250 mm; magnetic disc ø200/250 mm (discs sold separately)
Rotation speed: 50 to 400 rpm, adjustable (50/60 Hz common)
Supply/drain water function: water supply cock with attached supply/drain hose
Power supply: single-phase 100 V, 50/60 Hz or single-phase 200–220 V, 50/60 Hz; 200 W geared motor
Dimensions / Weight: W390 × D655 (to drainage opening) × H195 mm / 31 kg

Technical specifications

• Rotation speed (SP-L1): 0 to 200 rpm (adjustable)
• Number of specimens: 1 to 3 (selectable)
• Applied pressure: 10 to 40 N per specimen (spring-type individual load)
• Specimen holder sizes: ø25 mm, ø30 mm, ø40 mm (3 positions); custom sizes available; holder sold separately
• Lubricator: included (analog flow-rate adjustment)
• Power (SP-L1): single-phase 100 V or 220 V; 75 W motor (plugs into IM-P2 outlet)
• SP-L1 Dimensions / Weight: W460 × D655 × H550 mm (685 mm when head lifted) / 50 kg (with IM-P2 installed)
• IM-P2 Disc sizes: grinding ø223/200/250 mm; polishing ø200/250 mm; magnetic ø200/250 mm
• IM-P2 Rotation speed: 50 to 400 rpm (adjustable)
• IM-P2 Power supply: single-phase 100 V (50/60 Hz) or single-phase 200–220 V; 200 W geared motor
• IM-P2 Dimensions / Weight: W390 × D655 × H195 mm / 31 kg
