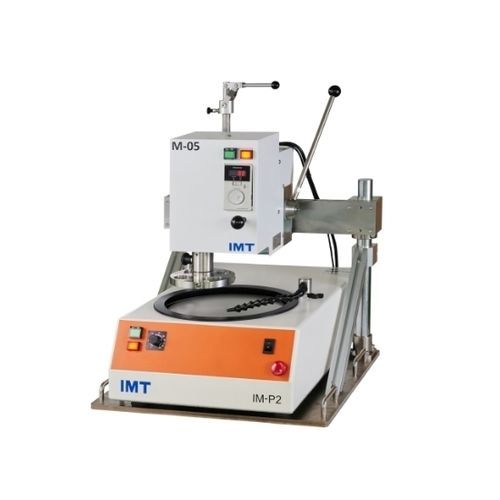

Rotating base M-05

Overview
The M-05 rotating specimen holder mounts on the IM-P2 polishing machine to enable polishing of non-mounted and non-cylindrical specimens. It provides adjustable rotation and a spring-type pressure system with three load steps. The standard holder outer diameter is Φ140 mm; adapters allow setting four specimens of Φ30 or Φ40 mm.

M-05 Specifications

• Compatibility: IM-P2 polishing machine
• Rotation speed: 0 to 150 rpm, adjustable
• Pressure: spring-type total load with 3 steps — 50 N, 85 N, 120 N
• Specimen holder outer diameter: Φ140 mm (4 specimens settable for Φ30 or Φ40 mm)
• Power: single-phase 220 V, 60 W motor (powered from IM-P2 socket)
• Dimensions (installed on IM-P2): W510 × D650 × H700 mm (to drainage opening / top of handle)
• Weight: M-05 body approx. 16 kg; mounting stand approx. 21 kg

IM-P2 Machine Specifications

• Recommended disc size when M-05 is installed: Φ250 mm
• Disc rotation speed: 50 to 400 rpm, adjustable (50/60 Hz)
• Water supply/drainage: water supply cock with hose connection
• Power supply: single-phase 100 V (or 200–220 V), 200 W geared motor
• Dimensions/Weight: W390 × D655 × H195 mm / 31 kg

Technical features

• Allows upgrading IM-P2 by connecting the M-05 unit
• Enables polishing of non-mounted and non-cylindrical specimens — suitability depends on specimen shape and size
• Holder and leveling machine available as options
• Plug-and-play power: M-05 motor powered via IM-P2 outlet
