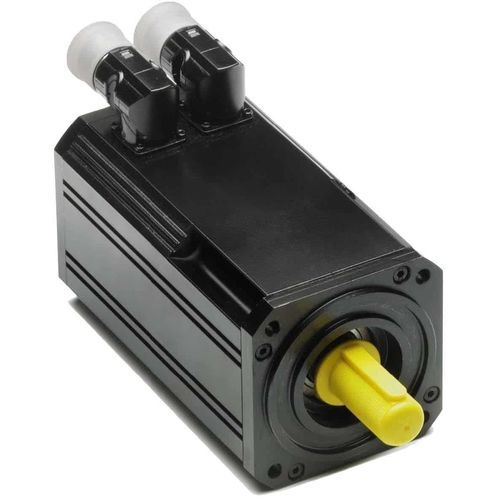

AC servomotor Xtrafors FP Prime400 V48 Vslotless
Add to favorites
Compare this product
Characteristics
- Type
- AC
- Voltage
- 400 V, 48 V
- Configuration
- modular, slotless
- Protection class
- IP67
- Other characteristics
- high-torque, high-precision, high-speed, high-efficiency, custom, low cogging
- Intensity
Max.: 137 A
Min.: 1.4 A
- Torque
Max.: 75 Nm
(55.317161 ft.lb)Min.: 0.24 Nm
(0.177015 ft.lb)- Rotational speed
Max.: 36,000 rpm
(226,194.6711 rad.min-1)Min.: 1,500 rpm
(9,424.778 rad.min-1)- Diameter
Max.: 192 mm
(7.56 in)Min.: 38 mm
(1.5 in)
Description
Overview
The Xtrafors FP Prime family is a modular, slotless AC servo motor series designed for demanding servo applications. The slotless stator delivers zero cogging torque and minimal torque ripple, enabling precise motion at high speeds and high torque levels.
Power
Versions
Features
Technical specifications
The Xtrafors FP Prime family is a modular, slotless AC servo motor series designed for demanding servo applications. The slotless stator delivers zero cogging torque and minimal torque ripple, enabling precise motion at high speeds and high torque levels.
Power
- Stall torque: 0.24 to 75 Nm
- Frame sizes: 38 to 192 mm
Versions
- Wide range of standard models
- Customized versions available
- CE compliant
Features
- Slotless stator for zero cogging
- High torque density
- Capable of high speed operation
- Compact, modular construction
- Minimal torque ripple and high rigidity
Technical specifications
- Motor family: Xtrafors FP Prime
- Construction: modular
- Stator design: slotless
- Stall torque range: 0.24 - 75 Nm
- Frame sizes: 38 - 192 mm
- Performance: high speed, high torque
- Torque quality: zero cogging, minimal torque ripple
- Efficiency: high efficiency
- Mechanical: high rigidity
- Compliance: CE compliant
- Offerings: wide range of standard models and customized versions
- Intended use: demanding servo applications
