Brushless servomotor Movinor T
AC400 Vultra-compact

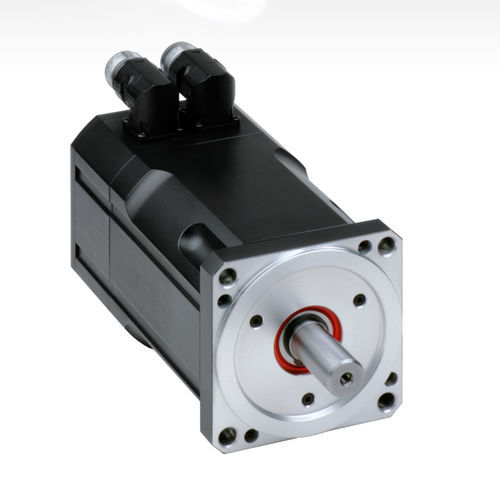

Brushless servomotor - Movinor T - Infranor Group - AC / 400 V / ultra-compact
Brushless servomotor - Movinor T - Infranor Group - AC / 400 V / ultra-compact
Add to favorites
Compare this product
Go to the Infranor Group website for more information

Characteristics

Type
AC, brushless
Voltage
400 V
Configuration
ultra-compact
Protection class
IP65, ATEX
Number of poles
6-pole
Other characteristics
high-torque, custom, UL certified, with built-in encoder
Intensity

Min.: 0.48 A

Max.: 44 A

Torque

Min.: 0.1 Nm
(0.073756 ft.lb)

Max.: 115 Nm
(84.819647 ft.lb)

Rotational speed

Min.: 2,000 rpm
(12,566.3706 rad.min-1)

Max.: 6,000 rpm
(37,699.1118 rad.min-1)

Diameter

Min.: 37 mm
(1.46 in)

Max.: 240 mm
(9.45 in)

Description

Overview
Brushless synchronous AC servo motor series with a 6-pole stator designed for industrial motion control applications. Modern magnetic circuit and winding deliver a high torque reserve and extended service life.

Power
  • Rated torque: 0.09 to 85 Nm
  • Frame sizes: 37 to 240 mm


Versions
  • Wide range of standard models
  • Custom and tailored versions on request
  • CE and UL certified variants available


Features
  • Ultra-compact construction for space-constrained installations
  • High torque reserve for dynamic applications
  • Protection class: IP-65


Options
  • Multiple motor feedback types (encoders/resolvers)
  • Additional rotor inertia options
  • ATEX-compliant versions for hazardous environments


Technical specifications
  • Motor type: Brushless synchronous servo motor
  • Stator: 6-pole
  • Rated torque range: 0.09 to 85 Nm
  • Frame size range: 37 to 240 mm
  • Design: Modern magnetic circuit and winding for high torque reserve and extended motor life
  • Protection: IP-65
  • Certifications: CE and UL (on some models)
  • Available executions: Standard models and custom versions
  • Options: Multiple feedback types, additional inertia, ATEX versions
