DC linear motor LM Series

iron-corecoreless48 V

Product overview

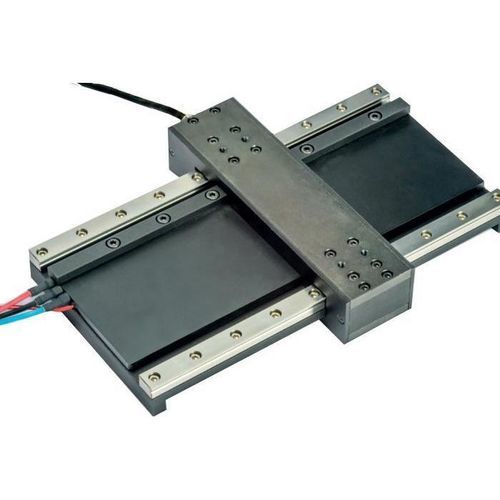

INFRANOR linear motors are direct‑drive actuators engineered for very high dynamics and precision. Available in coreless (U‑shaped) and iron‑core variants, they deliver fast accelerations, high peak speeds and a wide thrust range suited to ultra‑precision machining, semiconductor handling and high‑speed industrial automation.

Available series (summary table)
ATTRIBUTES | PRODUCT | COOLING | THRUST [N] (PEAK / CONTINUOUS) | PEAK SPEED [m/s] | ACCURACY (Two‑way repeatability [µm]) | PROTECTION LEVEL | DENOMINATION
CORELESS Linear Motors - U‑shaped — zero cogging for highest dynamics and ultimate precision. | image: lm-series.png | AIR | Up to 600 / Up to 100 | Up to 5 | Down to +0.2 | Standard | LM Series
DLMU Series — coreless variant for very high peak thrusts. | image: ld-series.png | AIR | Up to 16,200 / Up to 2,340 | Up to 6 | Down to +1 | Standard | DLMU Series
IRON‑CORE Linear Motors — high forces, acceleration and velocity for powerful motions (water/oil cooling option DLMF‑W). | image: ls-w-series.png | WATER/OIL | Up to 14,700 / Up to 6,490 | Up to 6 | Down to +2 | IP65 | DLMF‑W Series
DLMF (air‑cooled iron‑core) — compact iron‑core option. | image: ls-series.png | AIR | Up to 3,333 / Up to 1,200 | Up to 6 | Down to +2 | Standard | DLMF Series
Linear Motor MODULES — long strokes, high rigidity and load ratio; easy integration. | image: ls-m-series.png | AIR | Up to 1,859 / Up to 707 | Up to 6 | Down to +3 | Standard | HZM Series

Applications

• High‑end CNC machines and ultra‑precision machining
• Wafer processing and semiconductor handling
• Industrial automation requiring high translation speed and high forces

Characteristics / Technical specifications

• Drive type: direct‑drive linear motors (coreless U‑shaped and iron‑core options)
• High dynamics: designed for fast acceleration and high peak speeds (typical peak speeds up to 6 m/s depending on series)
• Thrust range: from small continuous/peak thrusts (e.g. up to 100 N continuous / 600 N peak for LM Series) to very high thrusts (e.g. up to 16,200 N peak for DLMU Series; up to 14,700 N peak for DLMF‑W Series)
• Cooling options: air cooling (many series), water/oil cooling (DLMF‑W Series)
• Accuracy (two‑way repeatability): down to +0.2 µm (coreless LM Series); other series down to +1 µm, +2 µm or +3 µm depending on model
• Protection: Standard or IP65 for water/oil‑cooled variants
• Modules: long‑stroke modules available for high rigidity and load ratio (HZM Series)
