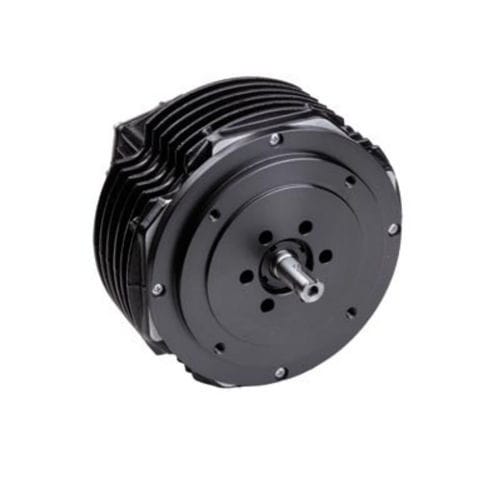

DC servomotor XtraforsMSS24 Vironlesscompact
Add to favorites
Compare this product
Characteristics
- Type
- DC
- Voltage
- 24 V
- Configuration
- ironless, compact, flat, flat-body
- Other characteristics
- high-precision, low-inertia, UL certified, low cogging, servo-driven
- Power
Min.: 190 W
(0.26 hp)Max.: 4,274 W
(5.81 hp)- Torque
Min.: 0.6 Nm
(0.442537 ft.lb)Max.: 13.6 Nm
(10.030845 ft.lb)- Rotational speed
4,000 rpm, 4,500 rpm, 5,000 rpm, 6,000 rpm, 7,000 rpm
(25,132.7412 rad.min-1, 28,274.3339 rad.min-1, 31,415.9265 rad.min-1, 37,699.1118 rad.min-1, 43,982.2972 rad.min-1)- Diameter
Min.: 129.5 mm
(5.1 in)Max.: 193 mm
(7.6 in)
Description
Product type
Overview
Flat XtraforsMSS motors are designed for precision servo applications in industrial environments. They deliver high dynamic response and very high positional accuracy at low speeds thanks to ironless rotor design and low inertia. Long-life brushes ensure extended service intervals for continuous operation.
Power
Executions
Features
Technical specifications
- DC flat servo motor
Overview
Flat XtraforsMSS motors are designed for precision servo applications in industrial environments. They deliver high dynamic response and very high positional accuracy at low speeds thanks to ironless rotor design and low inertia. Long-life brushes ensure extended service intervals for continuous operation.
Power
- Torque range: 0.6 to 13.6 Nm
- Rated speed: up to 6000 RPM
- Acceleration torque: up to 10× rated torque
Executions
- Wide range of standard models for common servo drives
- Customized versions available on request
- Available sizes: 129.5 mm to 193 mm
- Certifications: CSA and UL
Features
- Compact, low-profile construction for limited-space integration
- Zero cogging due to ironless rotor
- Low rotor inertia for fast acceleration and responsive control
Technical specifications
- Motor type: DC flat servo motor
- Rotor: ironless rotor
- Brushes: long-life brushes
- Torque range: 0.6 to 13.6 Nm
- Rated speed: up to 6000 RPM
- Acceleration torque: up to 10× rated torque
- Available sizes: 129.5 mm to 193 mm
- Certifications: CSA and UL
- Key attributes: high dynamics, extremely high rotation accuracy at low speeds, compact footprint, zero cogging, low inertia
