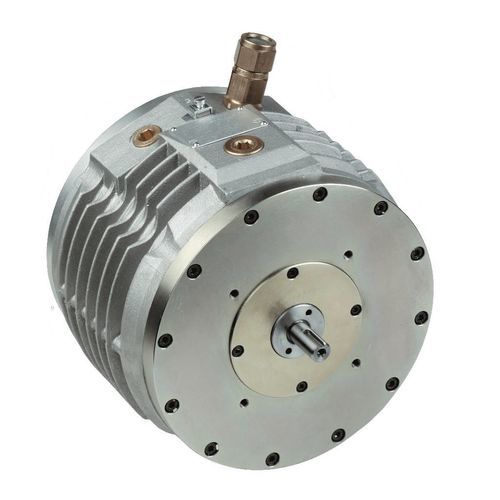

Brushless servomotor XtraforsEx

DCAC400 V

Overview
The XtraforsEx series are axial airgap AC and DC brushless servomotors housed in a flameproof enclosure. The motors are ATEX and CE compliant for Zone 1 and 21, Gas group IIC (Hydrogen).

Power

• MS series: Rated torque from 0.60 to 8.19 Nm
• MA series: Rated torque from 1.23 to 13.00 Nm

Executions

• Wide range of standard models
• Customized versions
• Sizes 149.5 to 188.6 mm

Features

• Ex d IIC certified ATEX (according to standard EN 60079)
• DC and AC brushless series
• Axial magnetic flux
• Low cogging torque

Options

• Brake
• Shaft without keyway
• Square flange (B5)
• AC series: Encoder feedback with Hall sensors
• AC series: Preassembled power and feedback cables
• AC series: Adaptation for low-backlash gearboxes
• DC series: Tachogenerator

Technical specifications

• Protection / Certification: Ex d IIC certified ATEX (EN 60079), CE compliant for Zone 1 and 21
• Gas group: IIC (Hydrogen)
• Motor types: Axial airgap servomotors, AC and DC brushless
• Magnetic topology: Axial magnetic flux
• Torque: MS series 0.60–8.19 Nm; MA series 1.23–13.00 Nm
• Sizes available: 149.5 mm to 188.6 mm
• Design characteristic: Low cogging torque
• Available options: Brake, shaft without keyway, square flange (B5), encoder feedback with Hall sensors (AC), preassembled power & feedback cables (AC), low-backlash gearbox adaptation (AC), tachogenerator (DC)
