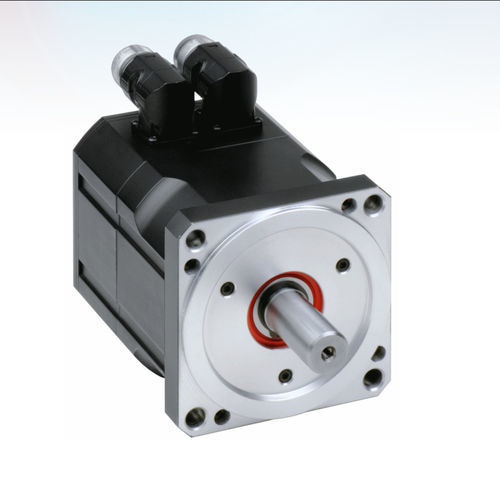

AC servomotor Movinor N

400 Vwith codercompact

Overview
Dynamic AC servo motor designed for industrial automation and positioning applications. Stators use segment winding technology derived from the H range, combined with optimized mechanical design and high-energy magnets to deliver a power increase of 15–20% depending on motor type and length.

Power

• Rated torque: 0.25 to 44 Nm
• Frame sizes: 55 to 190 mm

Executions

• Wide range of standard models
• Custom versions on request
• Certifications: CE and UL

Features

• Compact construction
• High torque density
• Low rotor inertia
• Protection class: IP-65

Options

• Multiple sensor options (encoders, resolvers)
• Wide choice of windings
• ATEX: II 3G Ex nA II 155°C and II 3D Ex tc IIIC 155°C

Technical specifications

• Stator technology: segment winding
• Derived from: H range
• Power increase: 15–20% (depending on motor type and length)
• Rated torque range: 0.25 to 44 Nm
• Frame sizes: 55 to 190 mm
• Protection: IP-65
• Available executions: standard models, custom versions
• Certifications: CE and UL; ATEX options available
• Options: sensors, multiple windings, ATEX-certified executions
