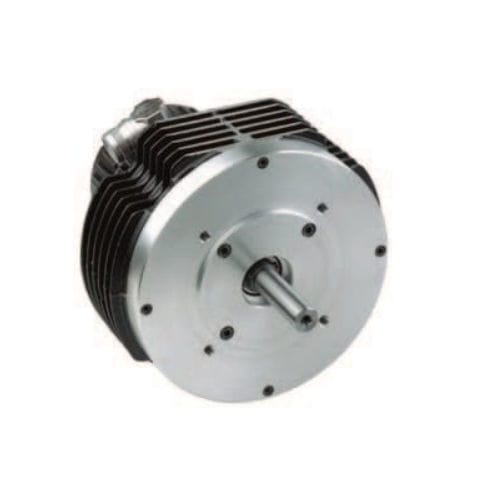

400 V servomotor XtraforsMSAcompactflatpackaging machine
Add to favorites
Compare this product
Characteristics
- Voltage
- 400 V
- Configuration
- compact, flat
- Applications
- packaging machine, for power tools
- Other characteristics
- high-precision, low-inertia, custom, low cogging, axial flux
- Intensity
Min.: 2.59 A
Max.: 17.86 A
- Torque
Min.: 1.4 Nm
(1.032587 ft.lb)Max.: 30 Nm
(22.126864 ft.lb)- Rotational speed
Min.: 3,000 rpm
(18,849.5559 rad.min-1)Max.: 10,000 rpm
(62,831.8531 rad.min-1)- Diameter
Min.: 128.5 mm
(5.06 in)Max.: 200 mm
(7.87 in)
Description
Overview XtraforsMSA series flat servomotors provide a range of low‑inertia, axial‑flux motors designed for compact installations and precise motion control. Reduced cogging torque and low inertia enable smooth operation and fast dynamic response.
Power Torque range: 1.4 to 30.0 Nm.
Executions
Features
Technical specifications
Power Torque range: 1.4 to 30.0 Nm.
Executions
- Wide range of standard models
- Customized versions for specific mechanical interfaces or windings
- Sizes available from 128.5 mm to 200 mm
Features
- Axial magnetic flux design
- Low cogging torque for smooth motion
- Low rotor inertia for improved dynamic response
- Compact construction with favorable torque/weight and torque/volume ratios
Technical specifications
- Series: MSA (flat servomotors)
- Torque range: 1.4 to 30.0 Nm
- Size range: 128.5 mm to 200 mm
- Axial magnetic flux topology
- Reduced cogging torque and low inertia
- Available as standard models or customized versions (mechanical/electrical)
- Typical applications: robotics, automated handling, packaging, precision positioning
