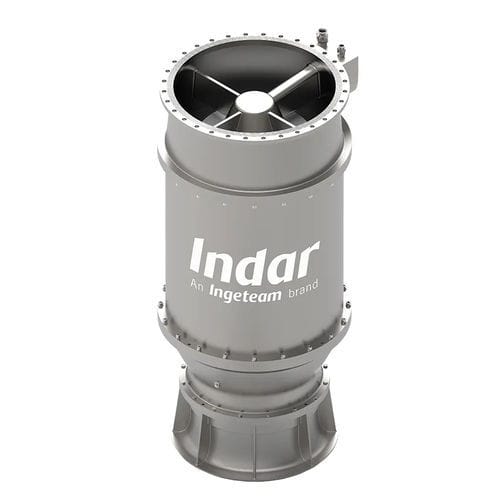

Propeller pump INDAR H

waterwastewaterfor seawater

Overview
INDAR H is a monoblock submersible vertical axial pump with an axial impeller or variable-pitch propeller coupled to a submersible motor. The motor-pump assembly is installed in the discharge piping to ensure correct positioning and centering of the pumping unit.

Technical data (summary)

• Model: INDAR H
• Manufacturer: Ingeteam
• Flow: 600 l/s - 6000 l/s
• Head: 1 m - 30 m
• Power: 50 kW - 2500 kW
• Voltage: 380 V / 13800 V
• Speed: 100 rpm - 1800 rpm
• Materials: cast iron, stainless steel 316, duplex, super duplex
• Configuration types: free discharge, pressurized or flanged discharge, anti-siphon discharge, long discharge pipes, H-type design (with jacket)

Key data

• Available for both low and medium voltage supplies.
• Suitable for municipal and industrial applications.

Characteristics / Features

• Submersible vertical axial pump design.
• Motor can be air-filled or water-filled.
• Large free passage for solids/balls to reduce clogging.
• Anchoring hook for easy installation and removal.
• Temperature, vibration and humidity sensors available.
• Common shaft between motor and impeller.
• Cables routed and protected, not in contact with pumped fluid.
• Integrated cooling system.
• Optimized for high flow rates at low to medium heads.

Installation

• Compact H-type design facilitates installation by using the discharge pipe to position the unit; can also operate in a horizontal orientation.
• Common installation types:
• Free discharge: simplest method, pumping achieved by overflow of the discharge pipe.
• Pressurized discharge: includes a non-return check valve to prevent backflow when the unit is stopped; used when discharge level varies significantly.
• Siphon discharge: siphon effect can significantly reduce energy consumption during pumping.
• Dry installation: in-line pipe installation enabling access to the pump while it is operating.

Applications

• Upstream and offshore (exploration and production)
• Midstream (transportation and storage)
• Downstream (refineries and petrochemical plants)
• Water supply
• Desalination
• Industrial cooling
• Pumped storage
• Mining
• Greenfield power generation
• Existing plants and retrofits
• Tidal installations

Product family

• INDAR Submersible Pumps
• Vertical Axial Pump
• Pumps
• Wire to Water

Technical specifications

• Flow: 600 l/s - 6000 l/s
• Head: 1 m - 30 m
• Power: 50 kW - 2500 kW
• Voltage: 380 V / 13800 V
• Speed: 100 rpm - 1800 rpm
• Materials: cast iron, stainless steel 316, duplex, super duplex
• Configuration types: free discharge, pressurized or flanged discharge, anti-siphon discharge, long discharge pipes, H-type design (with jacket)
