LED display IDEAL-P

numeric4-digitfor sensors

Overview

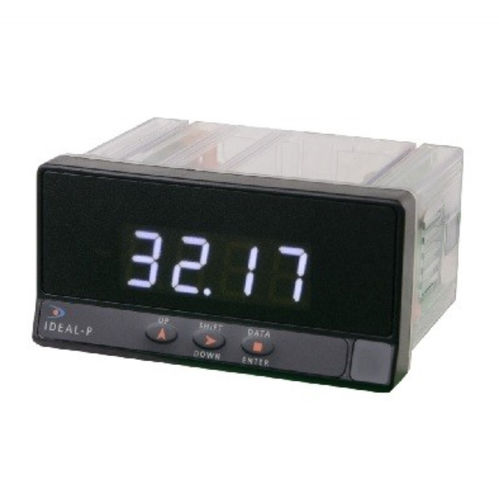

The IDEAL-P panel indicator of the KOSMOS series is a universal, multifunction configurable digital panel meter for reading and transmitting process and temperature signals. It displays input variables on 4 digits with decimal point in the required engineering units. Display range programming can be performed directly from the keypad or by direct acquisition of the input signal. The unit integrates a 24 Vdc sensor supply, a relay output and a 4-20 mA analog output.

Main features

• Display: 4 digits with decimal point, 14 mm digit height, display range -9999 to 9999, sign LED located to the left of the most significant digit.
• Process inputs: ±10 V, ±200 V, ±20 mA.
• Temperature inputs: Pt100 and thermocouples (types J, K, T, N).
• Outputs: 1 SPDT relay (8 A at 250 Vac); 1 4-20 mA analog output (replica), setpoint generator.
• Sensor supply: integrated 24 Vdc auxiliary output.
• User interface: 3-key keypad for configuration via separate menus and programming help messages.
• Programming: display range configuration from the keypad or automatically by acquiring the input signal.

Application
Designed for industrial measurement and transmission of process and temperature signals, for panel mounting in local monitoring and control systems.

Specifications

• Model: IDEAL-P (KOSMOS series).
• Process inputs: ±10 V, ±200 V, ±20 mA.
• Temperature inputs: Pt100, thermocouples J, K, T, N.
• Relay output: 1 x SPDT, 8 A @ 250 Vac.
• Analog output: 4-20 mA (replica) and setpoint generator function.
• Sensor supply: 24 Vdc available at output.
• Display: 4 digits + decimal point, digit height 14 mm, range -9999 to 9999, sign LED.
• Keypad: 3 keys for configuration and menu.
• Programming modes: local keypad or direct signal acquisition.
