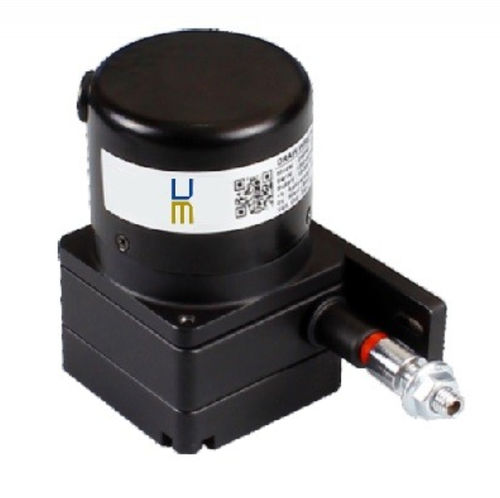

Incremental draw-wire encoder LCS06

opticalLine Driverdigital output

Overview
Cable encoder for linear displacement measurement LCS06. Designed to measure cable travel with an incremental optical output suitable for industrial systems.

Summary

• Technology: Incremental encoder / Optical
• Measuring range: 100…1200 mm
• Resolution: 50 µm, 25 µm; variants indicated 0.1 mm/ppr – 0.2 mm/ppr
• Outputs: TTL, HTL, Push-pull (A, B, Z or A/, A, B/, B, Z/, Z)
• Protection rating: IP54

Detailed description
The LCS06 is a cable encoder intended for linear displacement measurement. It uses incremental (optical) encoder technology to measure cable travel and provide Push-pull, TTL line driver or HTL line driver signals. This sensor is designed for long mechanical life and integrates into many industrial and machine-building applications. The sensor requires signal conditioning/processing for reading and display via appropriate measurement systems or software (display, transmitter, etc.).

Technical characteristics / specifications

• Reference / model: LCS06
• Technology: Incremental encoder (optical)
• Measuring range: 100…1200 mm
• Resolution (indicated): incremental with 50 µm and 25 µm
• Other resolution mention: 0.1 mm/ppr – 0.2 mm/ppr
• Output signal: A, B, Z or A/, A, B/, B, Z/, Z
• Signal type: Push-pull, TTL line driver or HTL line driver
• Supply voltage: 8–24 VDC, 5 VDC or 5–30 VDC (variants)
• Consumption: < 40 mA (24 VDC)
• Electrical connections: cable output (2.5 m standard)
• Maximum operating speed: 0.5 m/s
• Protection rating: IP54
• Housing material: Aluminium
• Mass: < 500 g
• Operating temperature: -20 to 80 °C
• Storage temperature: -30 to 90 °C
• Lifetime: long mechanical lifetime (generic mention)
