Incremental draw-wire encoder LCS07

opticalbuilt-in transmitter5VDC

Overview

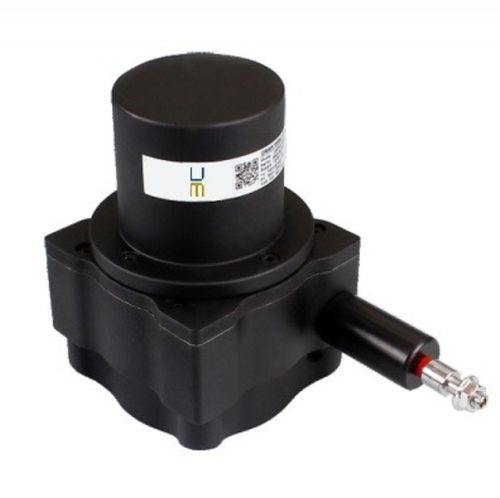

Cable position encoder LCS07. The LCS07 uses incremental (optical) encoder technology to measure cable travel and provide position signals. This sensor is designed for long mechanical life and integrates into many industrial and machine-building applications.

Key features

• Technology: incremental / optical encoder
• Measurement ranges: 1250…3300 mm
• Declared resolutions: incremental with 50 µm and 25 µm; indications of resolution 0.1 mm/ppr – 0.2 mm/ppr
• Easy mounting
• Good mechanical protection (high IP rating)

Outputs and signals

• Output signal: A, B, Z or A/, A, B/, B, Z/, Z
• Signal type: Push-pull, TTL Line driver or HTL Line driver

Power supply and consumption

• Supply voltage: 8 – 24 VDC, 5 VDC or 5 – 30 VDC
• Consumption: < 40 mA (24 VDC)
• Electrical connections: cable output (2.5 m standard)

Mechanical and environmental performance

• Maximum speed: 2 m/s
• Protection rating: IP65
• Housing material: aluminium
• Mass: < 1300 g
• Operating temperature: -20 to 80 °C
• Storage temperature: 30 to 90 °C

Applications

• Displacement/position measurement for industry and machine building

Technical characteristics / specifications

• Model reference: LCS07
• Technology: incremental encoder, optical
• Resolution: 50 µm and 25 µm indicated; 0.1 mm/ppr – 0.2 mm/ppr (as mentioned)
• Measuring ranges: 1250…3300 mm
• Output: A, B, Z (or complementary versions A/, B/, Z/)
• Output type: Push-pull, TTL Line driver, HTL Line driver
• Supply voltage: 8–24 VDC, 5 VDC or 5–30 VDC
• Consumption: < 40 mA (at 24 VDC)
• Connection: output cable 2.5 m (standard)
• Maximum speed: 2 m/s
• IP rating: IP65
• Housing: aluminium
• Mass: < 1300 g
• Operating temperature: -20 to 80 °C
• Storage temperature: 30 to 90 °C
