Incremental draw-wire encoder LCS02

opticaldigital outputplastic

Summary
Cable position sensor of incremental optical encoder type, designed for long strokes and precise incremental measurement. Outputs: Push-pull, TTL line driver or HTL line driver.

Main features

• Technology: Incremental optical encoder
• Measurement range: 500, 1000, 1500, 2500, 3000, 3500, 3600 mm
• Resolution: incremental 50 µm or 25 µm
• Output: TTL or HTL line driver; signals A, B, Z (A/,A, B/,B, Z/,Z)
• Easy mounting

Description

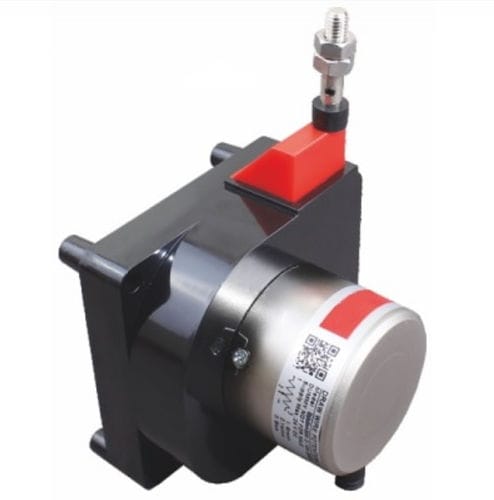

The LCS02 is a cable-position sensor using incremental optical measurement to track cable travel and deliver a digital encoder signal. The sensor provides long mechanical life and is suitable for a wide range of industrial applications.

Technical specifications

• Technology: Incremental optical encoder
• Measurement ranges: 500 to 3600 mm (available versions: 500, 1000, 1500, 2500, 3000, 3500, 3600 mm)
• Resolution: 50 µm or 25 µm (incremental); additional indications: 0.1 mm/ppr – 0.2 mm/ppr
• Output signals: A, B, Z (or A/,A, B/,B, Z/,Z)
• Signal types: Push-pull, TTL line driver, HTL line driver
• Supply voltage: 8–24 VDC, 5 VDC or 5–30 VDC
• Power consumption: <40 mA (at 24 VDC)
• Electrical connection: output cable (2.5 m standard)
• Protection rating: IP54
• Housing: Aluminum / Steel / ABS plastic
• Operating temperature: -20 to 80 °C
• Storage temperature: -30 to 90 °C
• Mechanical life: long mechanical service life
• Options: display, transmitter, calibration (COFRAC certificate or equivalent)

Options and accessories

• Integrated display modules
• Analog or digital transmitters
• Custom cable lengths and connector types
• Calibration certificate (COFRAC or equivalent)

Applications

• Linear position measurement on machines and production lines
• Actuators and hydraulic/pneumatic cylinders
• Conveyors and handling systems
• Test benches and measurement equipment
