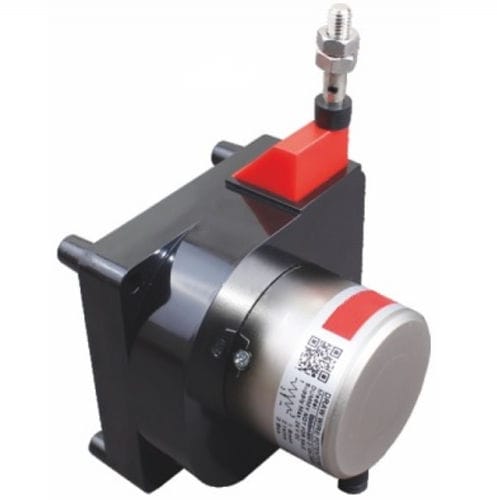

Potentiometer draw-wire encoder LCS01

4-20 mAvoltage outputanalog

Overview
The LCS01 linear cable displacement sensor uses potentiometric technology (resistance variation) to measure cable travel and deliver a proportional analog signal. Designed for industrial use with high mechanical service life.

Key features

• Technology: Potentiometer (resistive type)
• Measurement ranges: 500, 900, 1800 or 3600 mm
• Linearity: 0.5%, 0.1%, 0.05% of full scale (FS) depending on stroke
• Outputs: resistive, 0-10 V, 4-20 mA (with integrated conditioner)
• Mounting: simple

Electrical and mechanical data

• Supply voltage: 13–30 Vdc (24 Vdc max for voltage output)
• Electrical connections: output cable (2.5 m standard)
• Housing material: Aluminium / Steel / ABS plastic
• Protection rating: IP54
• Operating temperature: -20 to 80 °C
• Storage temperature: -30 to 90 °C

Options

• Optional: delivery with COFRAC calibration certificate, COFRAC-equivalent or COFRAC-traceable calibration

Technical specifications

• Model: LCS01
• Technology: Potentiometric (voltage divider)
• Measurement ranges: 500 mm, 900 mm, 1800 mm, 3600 mm
• Linearity: 0.5% / 0.1% / 0.05% of FS depending on stroke
• Output type: Resistive; 0-10 V; 4-20 mA
• Power supply: 13–30 Vdc (24 Vdc max for voltage output)
• Connection: output cable 2.5 m (standard)
• Housing: Aluminium / Steel / ABS
• IP rating: IP54
• Operating temperature: -20 to 80 °C
• Storage temperature: -30 to 90 °C
• Mounting: simple
• Mechanical life: high
