Absolute draw-wire encoder LCS03

potentiometer4-20 mAanalog

Overview

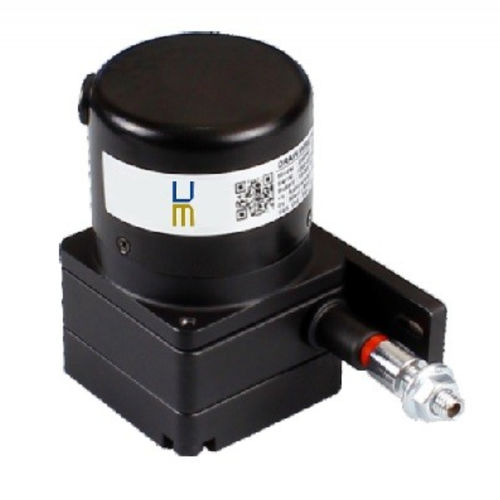

The LCS03 is a cable-actuated linear potentiometer using resistive potentiometric technology to measure position and displacement. It provides an analog output and is designed for long mechanical life in industrial applications requiring reliable position feedback.

Features

• Measurement range: 100–1200 mm
• Linearity: 0.5% of full scale
• Signal type: voltage divider (analog)
• Output options: resistive, 0–10 V, 4–20 mA
• Resistive output or integrated conditioner for voltage or current output
• Supply voltage: up to 24 V DC (for voltage output); 15–30 V DC
• Electrical connection: cable output (standard 2.5 m)
• Housing material: aluminium
• Protection rating: IP54
• Operating temperature: -20 to 80 °C
• Storage temperature: -30 to 90 °C
• Easy mounting

Applications
Position and displacement measurement for industrial machinery and special machines where an analog position signal is required.

Technical specifications

• Model: LCS03
• Technology: potentiometric (resistive)
• Measurement ranges: 100–1200 mm
• Linearity: 0.5% of full scale
• Output types: resistive, 0–10 V, 4–20 mA
• Supply voltage: up to 24 V DC (for voltage output); 15–30 V DC
• Standard cable length: 2.5 m
• Housing: aluminium
• IP rating: IP54
• Operating temperature: -20 to 80 °C
• Storage temperature: -30 to 90 °C
