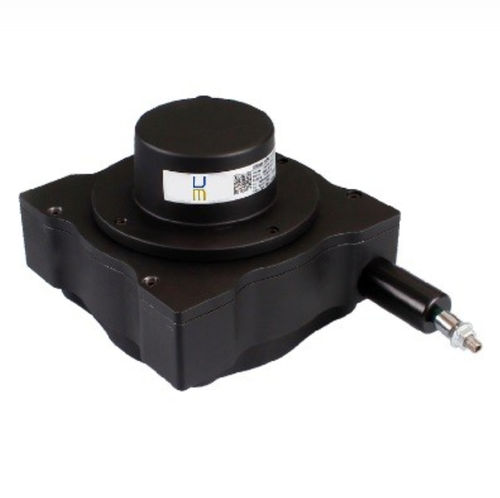

Potentiometer draw-wire encoder LCS05

analogvoltage output4-20 mA

Description
The LCS05 is a wire displacement sensor using potentiometric (resistive) technology to convert cable travel into an analog output. It is designed for long mechanical life and for integration in industrial systems and special machinery.

Functional summary

• Technology: potentiometric / resistive type
• Measurement range: 3500…8250 mm
• Linearity: 0.5% of full scale (FS)
• Signal type: voltage divider
• Output types: resistive, 0-10 V, 4-20 mA (resistive output or with integrated conditioner)
• Supply voltage: 15-30 VDC (24 VDC max for voltage/current outputs)
• Electrical connection: 2.5 m output cable (standard)
• Maximum speed: 1 m/s
• Housing material: aluminium
• Mass: < 2200 g
• Ingress protection: IP65
• Operating temperature: -20 to 80 °C
• Storage temperature: -30 to 90 °C
• Mounting: simple

Technical overview
The LCS05 measures the change in resistance caused by cable displacement and provides a proportional analog signal suitable for monitoring and control. Its mechanical design ensures extended service life under industrial operating conditions.

Features / technical specifications

• Model: LCS05
• Technology: resistive type (potentiometric)
• Measurement ranges: 3500…8250 mm
• Linearity: 0.5% of full scale (FS)
• Signal type: voltage divider
• Available outputs: resistive, 0-10 V, 4-20 mA
• Supply: 15-30 VDC (24 VDC max for voltage/current outputs)
• Connection: 2.5 m output cable (standard)
• Maximum operating speed: 1 m/s
• Housing: aluminium
• Mass: < 2200 g
• Ingress protection: IP65
• Operating temperature: -20 to 80 °C
• Storage temperature: -30 to 90 °C
• Mounting: simple
