Potentiometer draw-wire encoder LCS04
analog4-20 mAvoltage output

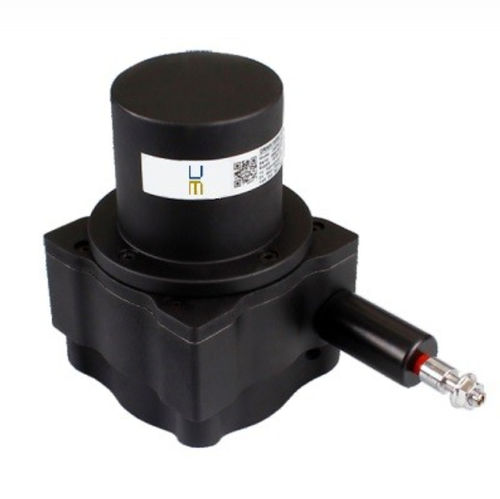

Potentiometer draw-wire encoder - LCS04 - Instrumentys - analog / 4-20 mA / voltage output
Potentiometer draw-wire encoder - LCS04 - Instrumentys - analog / 4-20 mA / voltage output
Add to favorites
Compare this product
Go to the Instrumentys website for more information

Characteristics

Technology
potentiometer
Output signal
analog, 4-20 mA, voltage output
Electrical connection
bare wires
Supply voltage
DC, 24VDC
Material
aluminum
Protection level
IP65
Applications
industrial
Length

Min.: 1,500 mm
(59.055 in)

Max.: 3,300 mm
(129.921 in)

Linear encoder speed

2 m/s
(6.56 ft/s)

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Description

Overview
  • Cable displacement sensor LCS04 with potentiometric technology (resistive element used as a voltage divider to determine cable position).
  • Designed for linear displacement measurement with long mechanical life, suitable for industrial applications and special machinery.


Operation and outputs
  • Technology: Potentiometer (resistive element, voltage divider).
  • Signal type: analog (voltage divider).
  • Available outputs: resistive output or conditioned output (0–10 V or 4–20 mA).


Operational features
  • Simple mounting and standard fixing.
  • Maximum operating speed: 2 m/s.
  • Connectivity: output cable (2.5 m standard).


Options
  • Delivery possible with calibration certificate (COFRAC, COFRAC equivalent or COFRAC-accredited certificate).


Technical specifications
  • Measurement range: 1500–3300 mm.
  • Linearity: 0.5% of full scale (FS).
  • Output types: resistive, 0–10 V, 4–20 mA.
  • Supply voltage: 15–30 V DC (24 V DC typical for voltage/current outputs).
  • Electrical connections: 2.5 m output cable (standard).
  • Maximum speed: 2 m/s.
  • Housing material: aluminium.
  • Mass: < 1300 g.
  • Ingress protection: IP65.
  • Operating temperature: -20 to 80 °C.
  • Storage temperature: -30 to 90 °C.
Go to the Instrumentys website for more information
