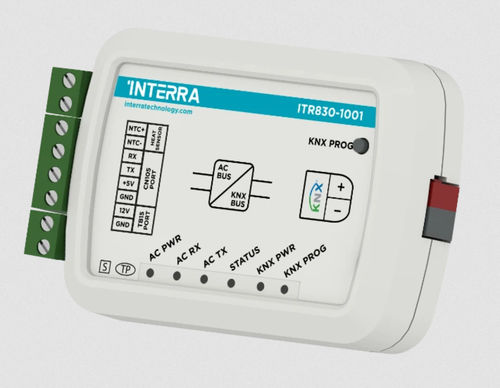

Communication gateway ITR830-1001

industrialKNX

ITR830-1001 is used for monitoring and controlling all the functioning parameters of Mitsubishi Electric air conditioners with KNX and ITR830-1001 is compatible with models in PAC, RAC, and City Multi VRF and Industrial types categorized in the compatibility list sold by Mitsubishi Electric. ITR830-1001 has an easy installation feature. It can be installed inside the own AC indoor unit, it connects one side directly to the electronic circuit of the AC indoor unit (cable supplied) and on the other side directly to the KNX bus. Main Functions: • ITR830-1001 device, provides complete bi-directional integration of Mitsubishi Electric AC with KNX bus. • The device provides extra communication objects for giving maximum flexibility. • Includes 4 logical and 8 converter advanced parameters for energy savings, configurable scenes, temperature limits etc. • Provides 3 binary inputs to integrate into KNX (i.e. motion detector, evacuation pump, window contact) • The AC unit provides error notifications for errors that may occur in exceptional cases.
