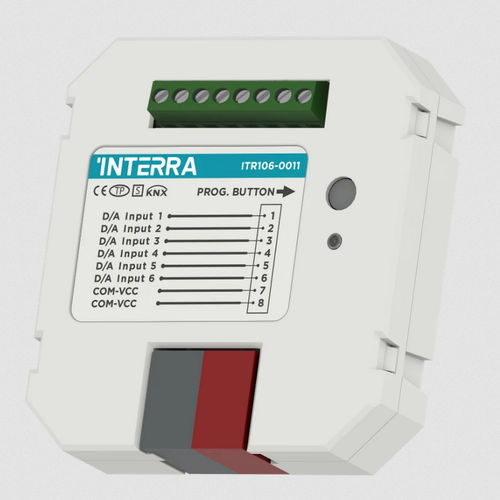

Analog input module ITR330-0000

RGB6-Imulti-channel

KNX Binary Input is used to interface the contacts to KNX bus substructure such as push buttons, switches etc. to make them communicating devices. The thermostat feature can be utilized with an internal or external temperature. Main Functions: The complete configuration of the device is performed via ETS5 or higher. Depending on ETS configuration and settings, the product feature will be different. Available functions are: Input Functions: • Switch Sensor • Switch / Dimming Sensor • Shutter Sensor • Value / Forced Operation • Control Scene • RGB Colour Control • RGBW Control • Mode Selection • Command Sequence Logic Functions Internal Inputs (max. 6) • Output Types (max. 5 selectable) External Inputs • Switch • Binary Value (adj. size) (max. 3 selectable) • Dim • Movement • Shutter • Temperature • Alarm • Brightness • Sequence • Scene Number • String • Threshold Most functions only need one input, and therefore each input might be assigned a different function. However, there are also some functions that can also use two inputs, such as “Dimming with 2 buttons” and “Shutter/Blinds with 2 buttons”.
