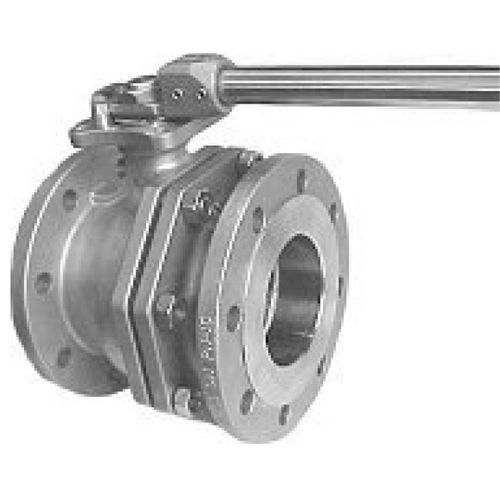

Ball valve leverfor waterflange
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Media
- for water
- Body
- flange, 2-piece, stainless steel
- Other characteristics
- fire-safe
- DN
Min.: 0.5 in
Max.: 8 in
- Pressure
Min.: 0 bar
(0 psi)Max.: 40 bar
(580.2 psi)- Temperature
Min.: -30 °C
(-22 °F)Max.: 180 °C
(356 °F)
Description
1. Full port ball valve, 2 pieces2. Flanged ends according DIN 2501-EN. PN40 DN 15 to DN 50 and PN16 DN 65 to DN 2003. Made of Stainless Steel Din 1.4408 (CF8M)4. Desing according DIN 3357 / ISO 57525. Face to face according Din 3202 F4 / F56. Ball seats PTFE + 15% G. F.7. Up to Dn 32 with spirometalic gasket8. Viton O’ ring stem9. Blow-out proof stem.10. Direct mounting actuator according ISO 5211 (patent system).11. Block System included12. Anti- Static device13. Fire-safe design14. Max.. Working pressure 40/16 bar15. Working Temperature -30 °C + 180 °C
