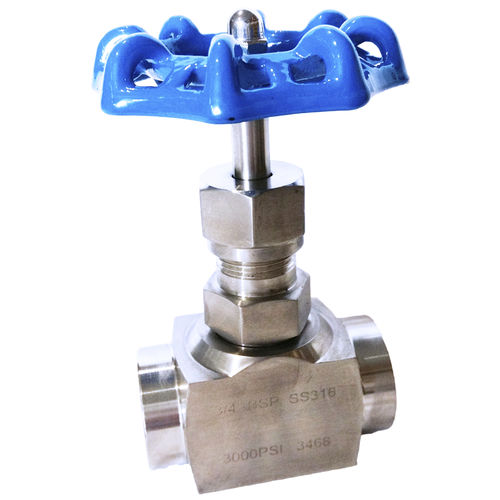

Needle valve with handwheelfor waterthreaded
Add to favorites
Compare this product
Characteristics
- Type
- needle
- Operation
- with handwheel
- Media
- for water
- Body
- threaded
- Material
- stainless steel
- DN
Min.: 0.25 in
Max.: 2 in
- Pressure
210 bar, 220 bar
(3,045.8 psi, 3,190.8 psi)- Temperature
200 °C, 240 °C, 260 °C
(392 °F, 464 °F, 500 °F)
Description
TECHNICAL INFORMATION1. Needle valve2. Made of Stainless steel ASTM A182 F3163. Threaded ends according EN 10226-1 (EX ISO 7-1 e DIN 2999) gas4. Stem Packing PTFE + Graphite5. Max. Working pressure 3000 Lbs.6. Pressure / Temperature Range:1/4” - 1/2” = 220 Bar / 260°C3/4” - 1” = 220 Bar / 240°C1 1/2” - 2” = 210 Bar / 200°CC
