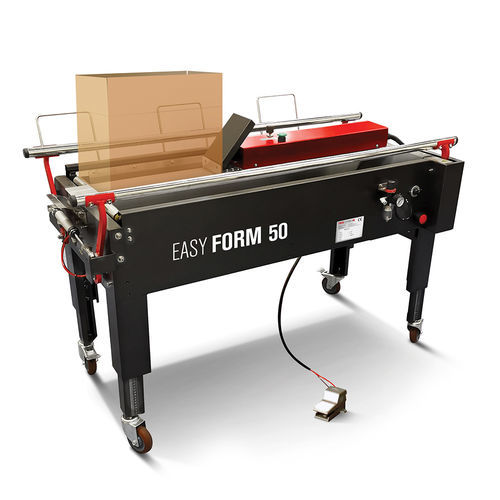

Semi-automatic case erector Easy Form 50

low-speedpneumatic

Product description
The Easy Form 50 is a semi-automatic machine for forming American-style cartons. It folds and supports the four lower flaps to keep the carton bottom closed during operator filling and facilitates transfer to the sealing station.

5 reasons to choose this product

• Technical support available for purchase and commissioning
• Competitive price-to-performance ratio
• 12-month warranty on spare parts
• Fast delivery and simple on-site setup
• Manufacturer with over 35 years of market presence

How it works
The operator inserts the flat box into the erector at an angle and presses down to fold the front and rear flaps. The box is then pushed forward to activate the pneumatic side-flap closers, which hold the bottom closed during filling. After filling, the operator manually closes the four top flaps and guides the box along the roller table to the sealing station.

Product information
Machine size: L 1230 x W 950 x H 700/880 mm
Net weight: 90 kg
Air pressure: 6 bar
Work surface height: 700–880 mm (adjustable)
Speed: up to 5 boxes per minute
Minimum product size: L 200 x W 160 x H 120 mm
Maximum product size: L 600 x W 480 x H 500 mm
Box type: American-style cartons
Box magazine capacity: approx. 20 boxes (depending on board thickness)

Technical specifications

• Model: Easy Form 50
• Machine dimensions: L 1230 x W 950 x H 700/880 mm
• Net weight: 90 kg
• Required air pressure: 6 bar
• Adjustable worktop height: 700–880 mm
• Throughput: up to 5 boxes/min (operator-dependent)
• Acceptable box dimensions (min): L 200 x W 160 x H 120 mm
• Acceptable box dimensions (max): L 600 x W 480 x H 500 mm
• Box format: American-style, 4 lower flaps folded and supported
• Box magazine: approx. 20 boxes (depends on cardboard thickness)
