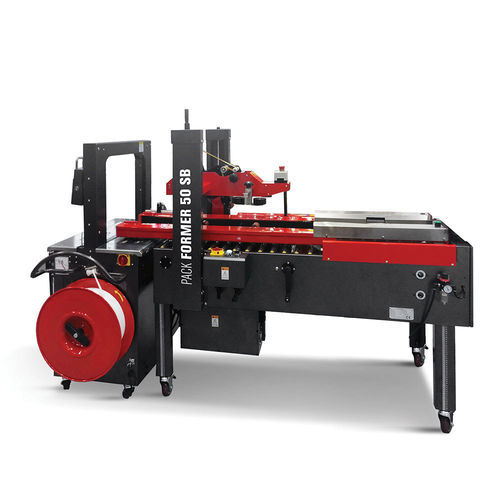

Automatic case former-packer-sealer 50 SB

adhesive tapemulti-functionpneumatic

Product overview
The Pack Former 50 SB is an integrated station for box forming, tape sealing and strapping. It combines a box forming unit with a pusher cylinder, a dual-head taping module applying two central tape strips (upper and lower), and an integrated strapping unit capable of applying one or two parallel PP straps. The module uses two motorized lateral drive belts and includes an outfeed roller accumulation conveyor. Box transfer speed: 22 m/min. Powered by compressed air and electricity.

Key benefits

• Integrated solution for forming, sealing and automatic strapping
• Adjustable for different box sizes via motorized lateral belts
• Simple integration in packaging lines with outfeed accumulation
• Technical support at purchase and 12-month spare parts warranty
• Compact footprint for high functional density (4–6 boxes/min)

Operation and main components
The taping module applies two adhesive tape strips on the upper and lower central lines to ensure reliable sealing and flap alignment. Rollers guide the box to the strapping unit (model Speed Strap) which feeds and welds PP strapping automatically. Photocells for box detection are movable to set the spacing between straps. The station runs on combined pneumatic and electrical power and is designed for continuous operation in industrial packaging lines.

Strapping machine technical characteristics

• Strapping unit model: Speed Strap
• Supply: 220 V, 1 ph, 50/60 Hz
• Installed power (strapping): 0.70 kW
• Strapping speed: up to 65 cycles/min
• Strap type/width: PP 5 / 9 / 12 mm
• Strap thickness: 0.45–0.65 mm
• Max strap tension: up to 45 kg
• Strapping arch dimensions: L 650 x H 500 mm

Workable product

• Min. box size: L 200 x W 150 x H 120 mm
• Max. box size: L 500 x W 400 x H 450 mm
• Box type: American-style (RSC)
• Max box weight: 30 kg

Technical specifications

• Model: Pack Former 50 SB
• Brand: ISGPACK
• Supply voltage (forming/taping module): 380 V, 3 ph, 50/60 Hz
• Installed power (forming/taping): 0.4 kW
• Supply voltage (strapping unit): 220 V, 1 ph, 50/60 Hz
• Installed power (strapping): 0.70 kW
• Box transfer speed: 22 m/min
• Production capacity: 4–6 boxes/min
• Air pressure / consumption: 6 bar / 2 Nl/min
• Strapping: PP 5–9–12 mm; strap thickness 0.45–0.65 mm; max tension 45 kg
• Adhesive tape: kraft, polypropylene, PVC — standard heads 50–75 mm
• Machine dimensions: L 2460 x W 1460 x H 1285–1535 mm
• Worktop height: 600–850 mm
• Max noise level: ≤ 75 dB
