Automatic case erector 50 SB

bottom sealeradhesive tapelow-speed

Overview

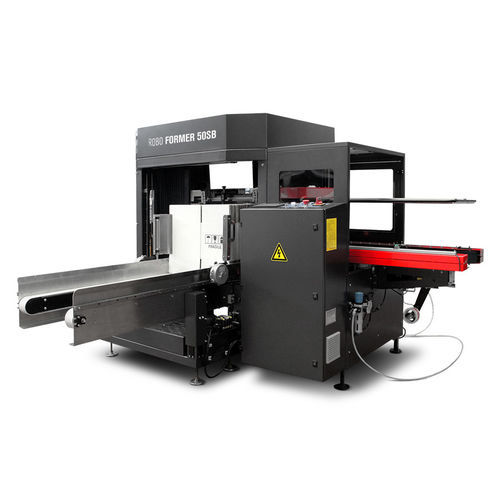

The Robo Former 50 SB Servo carton erector is an automatic machine for erecting and bottom-taping American-style cartons. It features a motorized horizontal magazine with capacity up to 150 cartons (depending on board thickness), a servo-assisted robotic arm for safe pick-up and precise squaring, and Siemens PLC with color touchscreen for format management. The machine is powered by compressed air and electricity and delivers a production rate up to 25 boxes/min. Available in right- or left-hand exit versions.

Main functions

• Forms and tapes the four lower flaps of American-style boxes using positive opening forming, suitable for square or very lightweight boxes
• Motorized horizontal magazine feeding (capacity up to 150 cartons, variable)
• Format changes managed from control panel via Siemens PLC and touchscreen with multi-memory presets
• Bottom closure with adhesive tape using a lower taping head
• Right- or left-hand exit configuration available

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical support during purchase
• Cost-effective solution
• 12-month warranty on spare parts
• Quick lead times
• Manufacturer presence on the market for over 35 years

Key features (excerpt)

• Motorized horizontal magazine (capacity up to 150 cartons depending on cardboard thickness)
• Production speed: 0–25 boxes/min
• Servo-assisted robotic arm for safe picking and perfect squaring
• Siemens PLC and color touchscreen with multi-memory presets
• Bottom closure with adhesive tape (lower taping head)
• Worktop height: 650 + 100 mm
• Standard taping head width: 50–75 mm
• Adhesive tape types: Kraft, Polypropylene, PVC

Product Details (table items)
L 2713 x W 2468 x H 1732 mm
Net weight: 1040 Kg
Supply voltage: 220 V 1Ph
Power frequency: 50 / 60 Hz
Installed power: 1.20 kW
Air consumption: 5/6 N liters/min (other listing: 220 liters/min)
Air pressure: 6 bar
Box magazine capacity: 150 boxes
Minimum box size: L 260 x W 160 x H 160 mm
Maximum box size: L 480 x W 380 x H 380 mm
Box type: American style

Technical features / Technical Data (additional)

• Machine weight: 1040 kg
• Machine dimensions: L 2713 × W 2468 × H 1732 mm
• Production: 0–25 boxes/min
• Power supply: 220 V – 1Ph – 50/60 Hz
• Installed power: 1.2 kW
• Air pressure: 6 bar
• Air consumption (alternate): 220 liters/min
• Sound emission: <75 dB(A)
• Magazine capacity: up to 150 boxes (depending on cardboard thickness)
