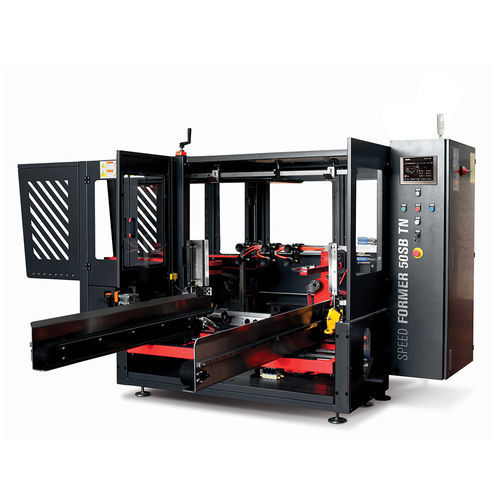

Automatic case erector 50 SB TN

adhesive tapehot-melt glueprecise folding

Overview
The Speed Former 50 SB TN is a fully automatic carton erector with a vertical magazine designed to pick, open, square and close American-style cartons. The machine uses electro-pneumatic actuation with synchronized movements, Siemens PLC control and a color touchscreen. Production speed varies by carton type, up to 16 cartons/min.

Highlights

• Vertical magazine feeding (optional motorized horizontal magazine up to 1500 mm).
• Suction-cup gripping head (Venturi powered) for box pickup and secure holding during opening.
• Format adjustments (width, length, magazine height) via touchscreen controlled servomotors.
• Bottom closing with adhesive tape or optional hot-glue unit (Nordson Mesa compatible).
• Available with right- or left-hand box exit configuration.

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical support available for purchase and commissioning
• Competitive total cost of ownership for automated case erecting
• 12-month warranty on spare parts
• Compact layout and fast setup/format change
• Manufacturer experience: over 35 years on the market

Key features

• Automatic forming and taping of carton bottoms by folding four bottom flaps.
• Electro-pneumatic components ensure precise forming and squaring with high reliability and safety.
• Siemens PLC with multilingual color touchscreen for intuitive operator control.
• Four servomotors for width/length/magazine-height adjustments and taping-width adjustment.
• Venturi-powered suction head and mechanical clamping for secure handling during opening.
• Optional motorized horizontal magazine and optional hot-glue closing unit.
• Up to 30 program memories manageable from the touchscreen panel.

Product information
Machine dimensions: L 2630 mm × W 2560 mm × H 1300–1450 mm
Net weight: 950 kg
Supply voltage: 380 V, 3 ph
Frequency: 50 / 60 Hz
Installed power: 1.20 kW
Air consumption: 220 L/min
Air pressure: 6 bar
Magazine capacity: approx. 150 boxes (varies with board thickness)
Min. box size: L 250 × W 150 × H 150 mm
Max. box size: L 530 × W 400 × H 400 mm
Box type: American-style (four-flap bottom)

Technical specifications

• Power supply: 380 V – 50/60 Hz – 3 ph
• Installed power: 1.2 kW
• Air pressure: 6 bar
• Air consumption: 220 L/min
• Motorized box magazine (optional): up to 1500 mm; typical capacity ~150 boxes
• Production capacity: 1–16 boxes/min (depending on box characteristics)
• Machine weight: 950 kg
• Machine dimensions: L 2630 × W 2560 × H 1300–1450 mm
• Max noise level: ≤ 75 dB
• Emergency stop (CE compliant)
• Compatible tape types: Kraft, polypropylene, PVC
• Standard taping heads: 50–75 mm
• Worktop height: 650 + 100 mm
• 30 program memories accessible via touchscreen
