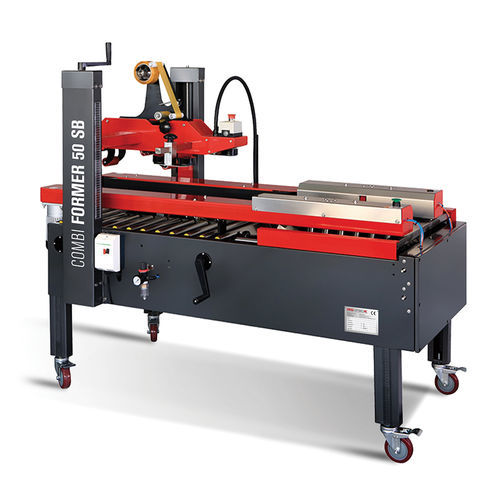

Automatic case former-sealer 50 SB

adhesive tape

Product overview
The Combi Former 50 SB is a box forming and taping station combining a box forming section with a pushing cylinder and a sealing/taping section equipped with two motorized lateral drive belts. It is designed for packaging a range of formats; taping is applied simultaneously to both the bottom and the top of American-style boxes.

How it works
The machine forms and seals American-style boxes by applying two adhesive tape strips simultaneously along the top and bottom centerlines. Motorized side belts and high-performance taping heads ensure accurate flap alignment and a consistent seal.

5 great reasons to choose this product

• Technical support available for purchase
• Good price-performance ratio
• 12-month warranty on spare parts
• Fast delivery and quick commissioning
• Manufacturer present on the market for over 35 years

Product information (table)
Machine size: L 1780 x W 930 x H 1380-1480 mm
Net weight: 260 kg
Supply voltage: 380 V – 3 ph
Power frequency: 50 / 60 Hz
Installed power: 0.4 kW
Air consumption: 2 Nl/min
Air pressure: 6 bar
Work surface height: 720 - 820 mm
Minimum product size: L 200 x W 150 x H 120 mm
Maximum product size: L 500 x W 400 x H 450 mm
Type of boxes: American style

Machine features and parameters

• Machine weight: 260 kg
• Power supply: 380 V – 50/60 Hz – 3 ph
• Installed power: 0.40 kW
• Air pressure: 6 bar
• Air consumption: 2 Nl/min
• Box transfer speed: 22 m/min
• Maximum box weight: 30 kg
• Machine dimensions: L 1780 x W 930 x H 1380–1480 mm
• Maximum noise: ≤ 75 dB
• Adhesive tape: Kraft, polypropylene, PVC
• Standard taping heads width: 50–75 mm
• Worktop height: 720–820 mm
• Production capacity: approx. 10–12 boxes/min

Workable product

• Minimum box dimensions: L 200 x W 150 x H 120 mm
• Maximum box dimensions: L 500 x W 400 x H 450 mm
• Type of boxes: American type

Characteristics / technical specifications

• Model: Combi Former 50 SB
• Machine size: L 1780 x W 930 x H 1380–1480 mm
• Net weight: 260 kg
• Supply voltage: 380 V – 3 ph – 50/60 Hz
• Installed power: 0.4 kW
• Compressed air: 6 bar, consumption 2 Nl/min
• Work surface height: 720–820 mm
• Transfer speed: 22 m/min
• Capacity: 10–12 boxes/min
• Maximum box weight: 30 kg
• Supported tapes: Kraft, polypropylene, PVC (heads 50–75 mm)
• Working product size: min L200 x W150 x H120 mm – max L500 x W400 x H450 mm
• Box type: American
• Maximum noise: ≤ 75 dB
