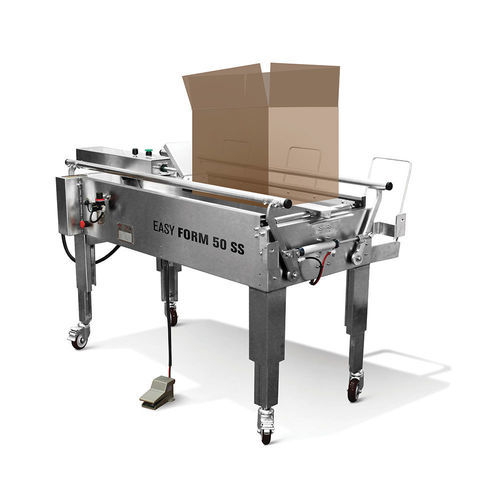

Semi-automatic case erector Easy Form 50 SS

low-speedpneumatic

Overview
The Easy Form 50 SS is a semi-automatic stainless steel carton erector designed to form American-style (4-flap) boxes by folding and holding the four lower flaps to facilitate operator filling operations.

How the carton erector works
The operator inserts the flat box into the machine at an angle and presses down to fold the front and rear flaps. The box is then pushed forward to activate pneumatic side-flap closers that hold the bottom closed during filling. After filling, the operator manually closes the four top flaps and conveys the box to the sealing station via the roller table.

5 key reasons to choose this product

• Technical purchasing support available
• 12-month warranty on spare parts
• Compact footprint with quick setup
• Up to 5 boxes per minute production capacity
• Manufacturer with over 35 years of market presence

Product information
Machine size: L 1230 x W 950 x H 700/880 mm
Net weight: 90 kg
Air pressure required: 6 bar
Work surface height: 700 / 880 mm (adjustable)
Speed: Up to 5 boxes per minute
Minimum box size: L 200 x W 160 x H 120 mm
Maximum box size: L 600 x W 480 x H 500 mm
Type of boxes: American style (4 flaps)
Box magazine capacity: approx. 20 boxes (depending on cardboard thickness)

Technical features

• Model: Easy Form 50 SS
• Frame material: Stainless steel
• Machine weight: 90 kg
• Required air pressure: 6 bar
• Adjustable worktop height: 700–880 mm
• Production capacity: up to 5 boxes/min
• Box magazine: ≈20 boxes (dependent on board thickness)

Workable product

• Minimum box dimensions: L 200 x W 160 x H 120 mm
• Maximum box dimensions: L 600 x W 480 x H 500 mm
• Compatible box type: American style (RSC)

Options and accessories

• Pneumatic components (piston units)
• Foot pedals (single or dual) for operator control
• Vacuum gauge / vacuometer for specific configurations
• Integration with sealing station and roller conveyor

Manufacturer / model
Brand: ISGPACK
Model: Easy Form 50 SS
