Brushless DC motorized roller PM605XPBLDC24 Vdriven
Add to favorites
Compare this product
Characteristics
- Motor type
- brushless DC, BLDC
- Voltage
- 24 V
- Drive mechanism
- driven
- Options
- for conveyor, direct current, for industrial applications, with integrated circuit board, low-noise level, IP54, for light-duty applications, maintenance-free
- Diameter
60.5 mm
(2.4 in)
Description
Overview

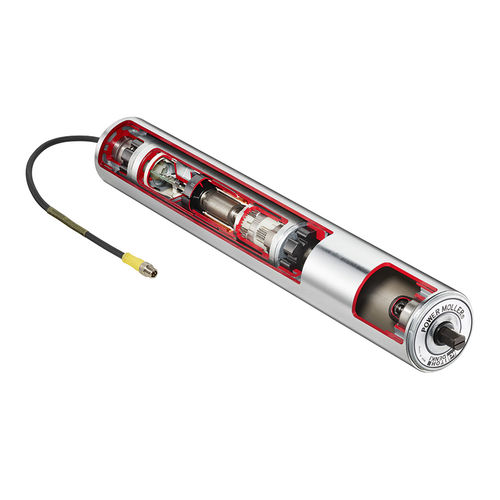

The PM605XP is a 24V brushless motorised roller for conveyor systems, engineered to convey light to medium loads (recommended up to 500 kg). It delivers very high starting torque suitable for order-picking, distribution and assembly lines, and for automated warehouses using shuttles or trolleys.
Integrated controller and installation
The electronic control board is housed inside the roller body for compact installation and improved protection. Wiring is simplified via an M8 connector, enabling fast integration and reliable operation in dusty or wet environments.
Control options
The PM605XP supports control by PLC, ASi‑Bus (via Bihl & Wiedemann modules) or by logic sensors with integrated ZPA (e.g. Wenglor). It can be interfaced with external controllers for flexible system architectures.
Key features
Applications / Recommended usage
Ideal for conveyors in order preparation, distribution and assembly lines, and for automated warehouses with shuttles or trolleys where high starting power is required.
Advantages
Technical specifications
The PM605XP is a 24V brushless motorised roller for conveyor systems, engineered to convey light to medium loads (recommended up to 500 kg). It delivers very high starting torque suitable for order-picking, distribution and assembly lines, and for automated warehouses using shuttles or trolleys.
Integrated controller and installation
The electronic control board is housed inside the roller body for compact installation and improved protection. Wiring is simplified via an M8 connector, enabling fast integration and reliable operation in dusty or wet environments.
Control options
The PM605XP supports control by PLC, ASi‑Bus (via Bihl & Wiedemann modules) or by logic sensors with integrated ZPA (e.g. Wenglor). It can be interfaced with external controllers for flexible system architectures.
Key features
- 24V brushless motorised roller
- Very high starting torque / high starting power
- Integrated control board within roller body
- Simple wiring with M8 connector
- Available versions for harsh environments (IP54, IP65, cold store)
- Control compatibility: PLC, ASi‑Bus (Bihl & Wiedemann), logic sensors with ZPA (Wenglor)
Applications / Recommended usage
Ideal for conveyors in order preparation, distribution and assembly lines, and for automated warehouses with shuttles or trolleys where high starting power is required.
Advantages
- Flexible & modular: easy integration into conveyor systems; customized lengths
- Cost efficient: space optimisation, low maintenance, extended service life, low power consumption
- Safe: low voltage operation, stoppable by hand, quiet running
- Environmental: low energy consumption, clean and recyclable
Technical specifications
- Model: PM605XP
- Voltage: 24 V (brushless)
- Recommended load capacity: up to 500 kg (light to medium loads)
- Diameter: 60.5 mm
- Available versions: IP54, IP65, cold store version
- Integrated control board inside roller body
- Connector: M8 for simplified wiring
- High starting torque suitable for shuttles and trolleys
- Control compatibility: PLC, ASi‑Bus (via Bihl & Wiedemann), logic sensors with integrated ZPA (Wenglor)
- Designed for difficult environments: dust and liquid resistant options
