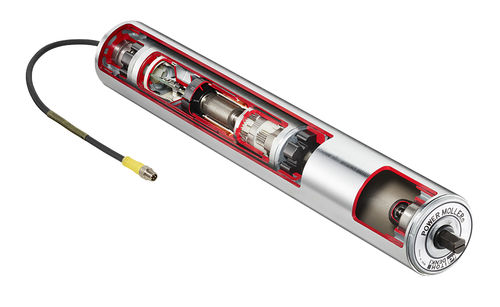

Brushless DC motorized roller PM605XEbrushlessBLDC24 V
Add to favorites
Compare this product
Characteristics
- Motor type
- brushless DC, brushless, BLDC
- Voltage
- 24 V
- Options
- for conveyor, for industrial applications, for belt conveyors, with integrated circuit board, low-noise level, IP54, for light-duty applications, maintenance-free
- Diameter
60.5 mm
(2.4 in)
Description
Overview
The PM605XE is a 24 V brushless motorised roller designed to convey light to medium loads (up to 500 kg). The control circuit board is integrated inside the roller body for compact installation, simplified wiring via an M8 connector and improved protection of electronics. The PM605XE is suited to demanding environments (dust, liquids) and can be interfaced with PLCs, ASi-Bus (via Bihl & Wiedemann module) or logic sensors with integrated ZPA from Wenglor.
Key product data
Advantages
Control & integration
Integrated control board housed inside the roller body. Wiring through an M8 connector. Supported interfaces: PLC control, ASi-Bus (via Bihl & Wiedemann module) and logic sensors with integrated ZPA (Wenglor). Easy integration with standard conveyor control systems.
Technical specifications
The PM605XE is a 24 V brushless motorised roller designed to convey light to medium loads (up to 500 kg). The control circuit board is integrated inside the roller body for compact installation, simplified wiring via an M8 connector and improved protection of electronics. The PM605XE is suited to demanding environments (dust, liquids) and can be interfaced with PLCs, ASi-Bus (via Bihl & Wiedemann module) or logic sensors with integrated ZPA from Wenglor.
Key product data
- Diameter: 60.5 mm
- Recommended load class: Light to medium loads (up to 500 kg)
- Available protection classes: IP54, IP65
- Integrated control board inside roller body
- Wiring: M8 connector
Advantages
- Flexible and modular
- Easy integration into conveyor frames
- Custom lengths and sizes available
- Cost efficient
- Space optimisation in conveyors
- Nearly maintenance-free operation
- Extended service life
- Low power consumption
- Safe
- Low voltage operation (24 V)
- Stoppable by hand
- Quiet running
- Environmentally conscious
- Limited energy consumption
- Clean design and recyclable materials
Control & integration
Integrated control board housed inside the roller body. Wiring through an M8 connector. Supported interfaces: PLC control, ASi-Bus (via Bihl & Wiedemann module) and logic sensors with integrated ZPA (Wenglor). Easy integration with standard conveyor control systems.
Technical specifications
- Model: PM605XE
- Type: Motorised roller, brushless motor
- Rated voltage: 24 V
- Nominal diameter: 60.5 mm
- Recommended load: Light to medium (up to 500 kg)
- Integrated controller: Circuit board inside roller body
- Connector: M8 connector for wiring
- Protection classes: IP54, IP65
- Control options: PLC, ASi-Bus (Bihl & Wiedemann), logic sensors with ZPA (Wenglor)
- Suitable environments: Dusty and wet conditions
- Safety & operation: Low voltage, hand-stoppable, low noise
- Maintenance & energy: Low power consumption, almost maintenance-free, long service life
- Typical applications: Order picking, distribution, assembly lines
