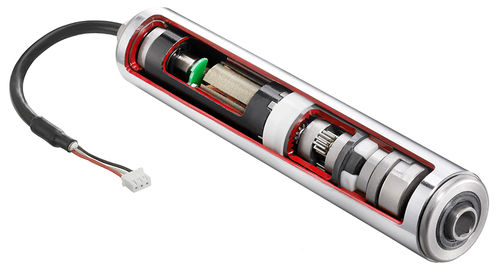

24 V motorized roller PM320HS

drivenfor belt conveyorsdirect current

Overview
The PM320HS motorised roller is a compact motor-driven roller for belt conveyors, designed for conveying, weighing, feeding and evacuation of very light to light loads. With a minimum length of 170 mm it is the shortest motorised roller available, enabling very compact conveyor layouts. The controller is separated from the gear-motor for improved durability and performance; the assembly can operate standalone or be controlled by a PLC.

General characteristics

• Model: PM320HS
• Diameter: 32 mm
• Nominal voltage: 24 V
• Minimum length: 170 mm
• Recommended load range: very light to light loads
• Configuration: external controller (controller separated from gear-motor)
• Available protections: IP54, IP65
• Typical applications: distribution, assembly lines, weighing, feeding, parts evacuation

Key advantages
Flexible and modular

• Easy integration into conveyor systems
• Customisable lengths

Cost efficient

• Space optimisation for compact designs
• Minimal maintenance requirements
• Extended service life
• Low power consumption

Safe

• Low-voltage operation (24 V)
• Stoppable by hand
• Quiet operation

Intelligent

• Integrated control logics (ZPA, slug, train)
• Configurable speed and direction
• Network communication (IoT) and predictive maintenance capability

Green

• Limited energy consumption
• Clean and recyclable materials

Compatible controller
Standard controller CB018:

• Speed and direction setting
• Error signalling

Technical specifications

• Model: PM320HS
• Diameter: 32 mm
• Minimum length: 170 mm
• Voltage: 24 V
• Protection: IP54 / IP65 (versions available)
• Controller: external, separated from gear-motor; standalone or PLC-controlled
• Integrated functions: ZPA, slug, train; configurable speed/direction
• Connectivity: network communication (IoT), predictive maintenance
• Environmental: low energy consumption; clean and recyclable
