24 V motorized roller PM500VEdrivendirect currentfor conveyor
Add to favorites
Compare this product
Characteristics
- Voltage
- 24 V
- Drive mechanism
- driven
- Options
- for conveyor, direct current, low-noise level, IP54, for light-duty applications, maintenance-free
- Diameter
50 mm
(2 in)
Description
Product overview

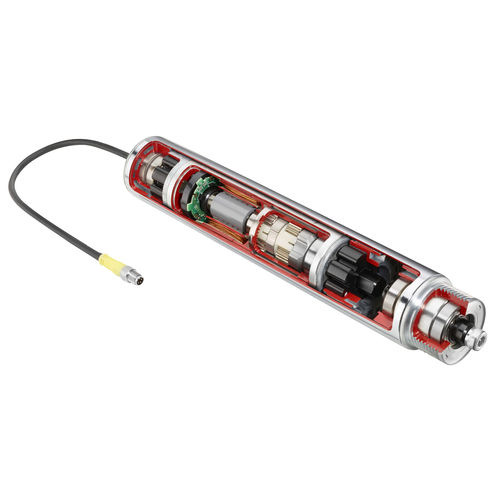

The PM500VE is a 24V DC motor-driven roller designed for conveying light to medium loads in order preparation, distribution and assembly lines. The controller is separated from the gear-motor to improve roller performance and service life. An M8 connector provides simplified and secure wiring.
Main characteristics
Key benefits
Applications
Compatible controllers
Technical specifications
The PM500VE is a 24V DC motor-driven roller designed for conveying light to medium loads in order preparation, distribution and assembly lines. The controller is separated from the gear-motor to improve roller performance and service life. An M8 connector provides simplified and secure wiring.
Main characteristics
- Model: PM500VE
- Type: 24V DC motor-driven roller with external controller
- Diameter: 50 mm
- Recommended load range: Light to medium loads
- Maximum handling capacity: Up to 300 kg
- Protection classes available: IP54, IP65
- Connector: M8
Key benefits
- Flexible and modular
- Easy integration in conveyor lines
- Customisable lengths and configurations
- Cost efficient
- Space optimisation
- Minimal maintenance
- Extended operational life due to separated controller
- Low power consumption
- Safe
- Low voltage operation
- Hand-stoppable design
- Quiet running
- Intelligent
- Integrated control logics (ZPA, slug, train, etc.)
- Configurable speed and direction
- Network communication / IoT options
- Support for predictive maintenance
- Environment
- Limited energy consumption
- Designed for clean, recyclable materials
Applications
- Order preparation
- Distribution
- Assembly lines
Compatible controllers
- CBV-108
- Speed and direction adjustment
- Error signalling
- AS-I power connection option
- HBV-609
- Speed and direction adjustment
- Error signalling
- ZPA logic (contactless accumulation)
- Control of 2 MDRs and 2 sensors
- IB-P01
- HBV-609 functions plus programmable control logic
- Network communication
- Separate motor/control power supplies
- Remote control and diagnostics
- IB-P05
- HBV-609 functions plus networked communication (e.g. Profinet)
- Separate motor/control power supplies
- Remote control and diagnostics
- Integrated cabling options
Technical specifications
- Model: PM500VE
- Operating voltage: 24V DC
- Roller diameter: 50 mm
- Recommended load: Light to medium (up to 300 kg)
- Protection: IP54, IP65 options
- Controller: External / separated from gear-motor
- Connector: M8
- Control features: ZPA, slug, train logics; configurable speed/direction; IoT/network capability
- Safety: Low voltage, hand-stoppable, low noise
- Environmental: Low power consumption, recyclable components
