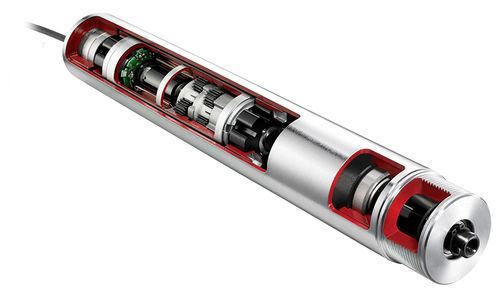

24 V motorized roller PM605KT

belt-drivendrivenfor belt conveyors

Overview
The PM605KT is a 24Vdc motorised drive roller (MDR) engineered for conveying medium and heavy unit loads and pallets, with a recommended maximum load capacity up to 1000 kg. Its high-torque design and separated external controller make it suitable for belt-on-roller conveyors, high-tension belts and heavily loaded conveying lines in industrial environments.

Key features

• Motor supply: 24Vdc motor roller
• High torque for heavy unit loads and pallet handling
• External controller separated from the gear-motor for improved roller performance
• Designed capacity: up to 1000 kg

Technical options / Versions

• Protection: IP54 available
• Protection: IP65 available
• Optional mechanical brake

Product highlights

• Roller diameter: 60.5 mm
• Recommended use: medium and heavy loads, pallet handling

Advantages

• Flexible and modular
  • Easy integration into conveyor frames
  • Customisable lengths and fittings
• Cost efficient
  • Space optimisation in conveyor design
  • Low maintenance requirements
  • Extended service life
  • Low power consumption
• Safe
  • Low-voltage operation
  • Can be manually stopped
  • Quiet running
• Intelligent
  • Support for integrated control logics (ZPA, slug, train, etc.)
  • Configurable speed and direction
  • Network communication ready (IoT)
  • Enables predictive maintenance
• Green
  • Reduced energy consumption
  • Clean and recyclable materials

Compatible circuit boards

• CBK-109
  • Speed and direction setting
  • Error output signal
• HBK-608
  • All CBK-109 functions plus
  • ZPA logic (zero pressure accumulation)
  • Controls 2 MDRs and 2 sensors
• IB-P02
  • Controls 2 MDRs and 2 sensors
  • Network communication (Profinet)
  • Separate motor and control power supplies
  • Remote control and diagnostic functions
• IB-E04
  • Controls 2 MDRs and 2 sensors
  • Network communication (Ethernet)
  • Separate motor and control power supplies
  • Remote control and diagnostic functions

Characteristics / technical specifications

• Model: PM605KT
• Motor type / supply: 24Vdc motor roller
• Roller diameter: 60.5 mm
• Recommended maximum load capacity: up to 1000 kg (unit loads, pallets)
• Controller: external / separated from gear-motor
• Typical applications: heavy unit loads, pallet handling, belt-on-roller conveyors, high-tension belts
• Available protections / options: IP54, IP65, mechanical brake
• Key capabilities: high torque, durable design, configurable control options, IoT/network-ready via compatible controllers
