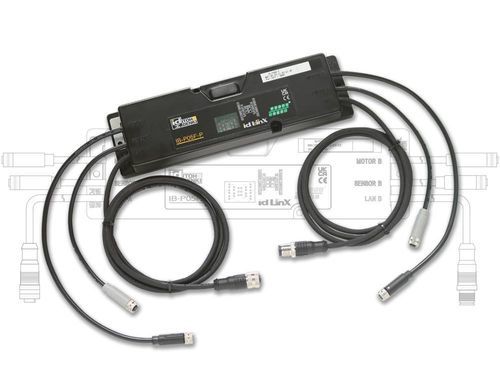

Motorized roller motor controller IB-P05with integrated I/OI/Ointegrated
Add to favorites
Compare this product
Characteristics
- Applications
- for motorized roller
- Input/output
- with integrated I/O, I/O
- Other characteristics
- programmable, with speed control, integrated, ProfiNet, real-time monitoring
Description
Overview
The IB-P05 is a Profinet networked controller designed for motorised drive rollers (MDR). It manages two conveyor zones, is fully configurable and can be integrated and controlled over a Profinet network for centralized operation and diagnostics.
Key features
Compatible MDR
Documentation
Technical specifications
The IB-P05 is a Profinet networked controller designed for motorised drive rollers (MDR). It manages two conveyor zones, is fully configurable and can be integrated and controlled over a Profinet network for centralized operation and diagnostics.
Key features
- Setting of speed and direction
- Error signal output
- ZPA logic (zero pressure accumulation)
- Controls up to 2 MDRs and 2 sensors
- Networked communication via Profinet
- Separate power supplies for motor and control
- Remote control and diagnostic capability
- Integrated cabling and AS-I power connection
Compatible MDR
- VE series — PM500VE (Ø50)
- VE series — PM605VE (Ø60.5)
Documentation
- Technical documentation (product technical PDF available)
- Drawings available
Technical specifications
- Product type: Profinet networked controller for motorised drive rollers
- Controls: 2 conveyor zones
- MDR control: up to 2 MDRs
- Sensor inputs: 2 sensors
- Speed and direction setting
- Error signaling output
- ZPA logic for zero pressure accumulation
- Network interface: Profinet
- Power: separate supplies for motor and control
- Remote control and diagnosis capability
- Integrated cabling and AS-I power connection
