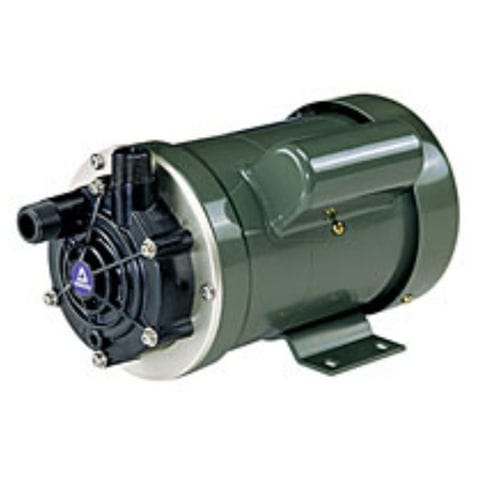

Turbine pump MDT seriesfor chemicalsmagnetic-drivestationary
Add to favorites
Compare this product
Characteristics
- Technology
- turbine
- Fluid
- for chemicals
- Operation
- magnetic-drive
- Mobility
- stationary
- Domain
- industrial
- Applications
- discharge, high-pressure, cooling, replacement
- Material
- plastic
- Voltage
- 220 V
- Other characteristics
- compact, seal
- Flow
14 l/min, 16 l/min, 17 l/min, 20 l/min
(3.69841 us gal/min, 4.22675 us gal/min, 4.49092 us gal/min, 5.28344 us gal/min)- Pressure
Max.: 350,000 Pa
(50.763 psi)Min.: 0 Pa
(0 psi)- Power
Max.: 220 W
(0.3 hp)Min.: 180 W
(0.24 hp)- Fluid temperature
Max.: 95 °C
(203 °F)Min.: -20 °C
(-4 °F)- Length
248 mm
(9.764 in)- Height
132 mm
(5.2 in)- Weight
6.3 kg
(13.89 lb)
Description
Mag. drive turbine pumps
With the MDT series mag. drive turbine pumps made of plastic are available. Discharge pressures up to 0.35 MPa are attainable. Thanks to the seal less construction, leackage and shaft seal replacement are avoided. By the compact measurements of the MDT is best suited for the incorporation in cooling and chiller systems such as laser or X-ray devices etc.
