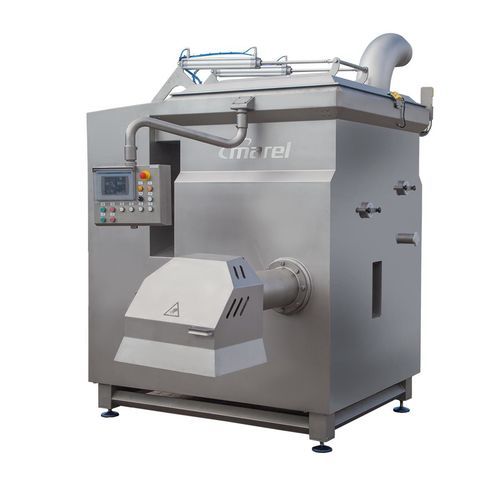

Industrial meat mincer MIXgrind

floor-standingfor the meat industryfor the food industry

Overview

• Equipped with a grinding unit
• Gross tank volume from 1,000 to 4,000 L
• Double-shaft intermeshing mixing for fast, gentle and homogeneous blending

Design and hygiene
The MIXgrind from JBT Marel is built with an AISI 304 stainless steel heavy-duty housing, bead blasted and designed without internal corners or edges to facilitate cleaning and meet strict hygiene requirements. The screw and screw housing are also stainless steel. Standard cleaning and access considerations allow integration in food-processing lines.

Operation and control
Standard equipment includes an interlocked safety cover over the grinder head, a crane for removal of grinder parts and an accessory trolley. The electric control is based on a Panel View PLC system providing automatic preset mixing programs and manual operation modes for process flexibility.

Specifications

• Motor starters: Soft starter or frequency converter
• Voltage: 3x400V - 50 Hz (or as required)
• Control voltage: 24V DC
• Compressed air: 7 bar (dry air)
• Grinder sizes: Ø 200 mm (standard for 1,000 L) and Ø 250 mm (standard for 1,500–4,000 L)
• Grinder capacity: depends on final hole size, product type and temperature
• Designed in accordance with CE standards

Versions
Machine code | Gross tank volume (liters) | Mixing volume (liters) | Mixer motor (kW) | Grinder motor (kW) | Grinder size (mm) | Machine weight (kg)
PM3203 | 1000 | 700 | 7.5 | 30 | Ø 200 | 2600
PM3205 | 1500 | 1200 | 15 | 45 | Ø 250 | 3500
PM3206 | 2000 | 1700 | 22 | 45 | Ø 250 | 3850
PM3207 | 3000 | 2200 | 30 | 45 | Ø 250 | 4650
PM3208 | 4000 | 2700 | 30 | 45 | Ø 250 | 4900

Accessories / Optional extras

• CO2 injection system
• Water dosing system
• Plate lid (hinged or sliding)
• Electronic weighing system
• Temperature sensor
• Inspection platform
• Accessory trolley
• Swing-away arm for control panel
