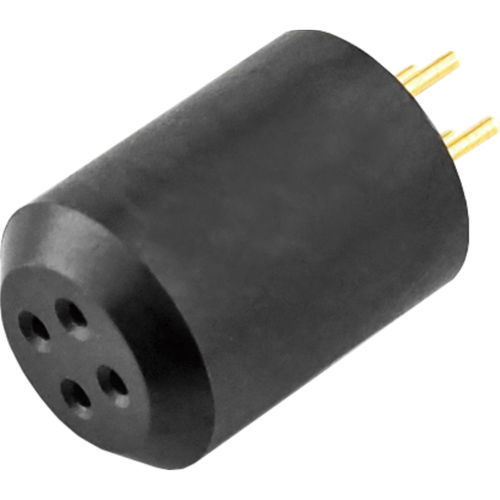

Laser diode socket LDHC254P-4P-F7L124

Laser Diode Socket,High Current 4Pin Pitch Circle This is a custom example of a Laser Diode socket. The inside has louver specifications, and it supports large currents. Pitch circles are 1.18mm to 2.54mm. If you request, we can flexibly design and manufacture even larger sizes. - High temperature - High current - High durability (max insertion / removal 10,000 times) - Special shape - Special number of pins, pin arrangement, pitch circle - Electro-Static Discharge (ESD) Dielectric Strength - Insulation Resistance - Contact Resistance - Current Rating - Operating Temperature - Sleeve - Brass, Au plating over Ni Louver - Copper Alloy, Au plating over Ni Insulator - High Temp. Thermoplastic Acceptable Lead Dia. - φ0.42～0.48/φ0.0165"～0.0189" Acceptable Lead length - 3.8～8.0/0.150"～0.315" Number of Pins - 4 We have a track record of supporting up to A of current value. Depending on conditions such as shape and size, it is possible to pass even higher current values. Device drawing Device sample Durability Operating temperature Current value Quantity
