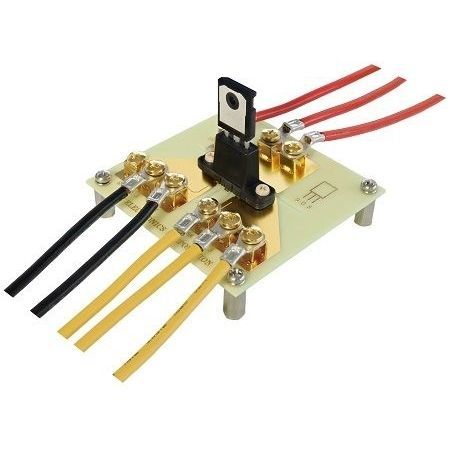

Transistor outline (TO) package test socket T3PH-L214-ST-BK-TEKB

for power transistorKelvin

- Power Transistor Sockets for 3-Terminal packages + Evaluation Test Board Set - High Current & High Withstand Voltage - SiC(Silicon Carbide) / GaN (Gallium Nitride) MOSFET Compatibility - Kelvin Connection - Reliability Test (THB and HTRB) Ready - A set of sockets and boards for various power transistors, suitable for use in evaluation testing. - Custom design and manufacturing are available upon request, so please feel free to contact us. * Wires with crimp terminals are not included. Please prepare them yourself. Acceptable packages : TO-220,TO-3P,TO-66,TO-247,TO-254,TO-262,TO-264 (Some package might not be usable. Please call us.) Specifications Current Rating : DC20A at 25°C (Between Drain and Source ) , Room temperature with 30°C T-Rise Insulaion Resistance : 500MΩ min. Withstanding Voltage : DC4000V 1minute at 25°C, AC3000Vrms 1 minute at 25°C (Between Drain and Source) Operating Temperature : -55 to +175°C
