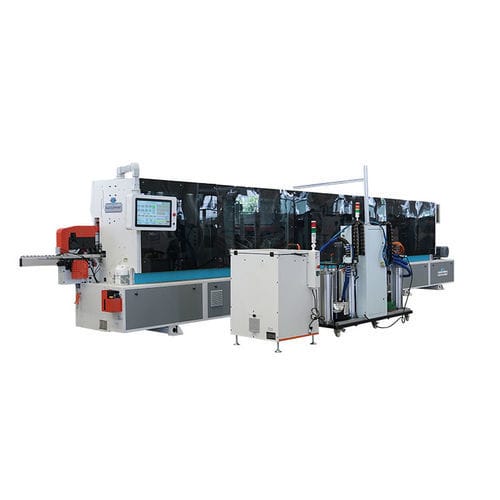

Automatic edge-banding machine E-510

for furniturefor panelsfor wood

The E-510 automatic edge banding machine is designed for beveled straight and soft-forming edges. It features a length of 9.62m and a robust structure, utilizing precision template technology for accurate profiling of left and right door panels. Capable of handling 21 edge profiles, it includes a 21.5-inch touchscreen for one-touch profile switching, edging approximately 9m/min. This machine is widely used for handle-free panel doors. Features: - The machine body is constructed from high-strength structural steel plates, offering excellent strength and stability. The surface is rust-proofed and electrostatically powder-coated. - The profiling (milling) structure is mature and stable, achieving a profiling error of ≤0.2 mm with precision template technology. A lubrication system ensures smooth rail movement and enhances durability. - The glue application system features a pot-style design for fast gluing, with one-touch glue purge and cleaning for convenience. - Independent beveled straight edge pressing provides strong pressure for a tight and smooth edge band finish. - Capable of forming and pressing, it includes a cooling and heating dual-purpose space room, allowing flexible temperature settings to ensure constant temperature pressing. - Equipped with automatic glue cleaning spray and four cleaning stations to prevent glue buildup, keeping the system clean and tidy. Parameters: - Model: E-510 - Edge banding shapes: 21 types of edge-banding profiles, including beveled straight, J-shape, C-shape, half-J, diamond, teardrop, rhombus, arc, etc. - Panel thickness: 18mm, 22mm, 25mm - Panel size: ≥380*150mm (380 is the edge banding dimension) - Edge banding thickness: Soft forming 0.52-0.8mm; Bevel and straight edge 0.5-2mm - Edge banding width: 35-70mm - Edge banding types: PVC - Hot melt adhesive type: EVA - Glue pot capacity: 2600ml - Power supply voltage: 380V/50HZ - Total power: 72kW (Full load) - Air source pressure: 0.6-0.8Mpa - Feed speed: 9m/min - Gas tank capacity: 5L+5L - External vacuum cleaner: Dust suction port φ150mm×3 - Glue pot operating temperature: 110℃-210℃ - Overall size (L×W×H): 962*131*206cm - Process shape switching: One-touch switching of the operation screen - Electric lift: 380V, 0.37KW - Total milling power: 38.9kW - Software updates: Course selection upgrade - Double glue pot (Customized): PUR edge banding
