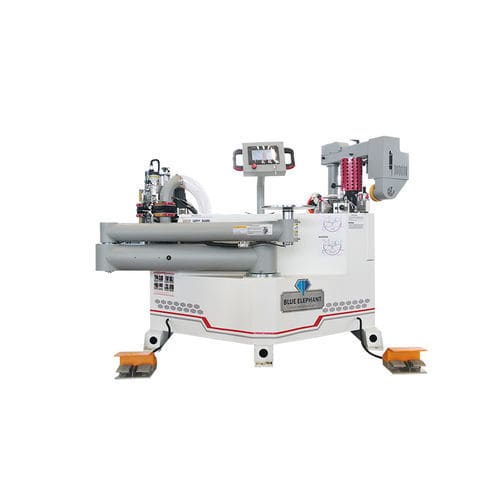

Automatic edge-banding machine E-700-3 pro

for woodfor panelsfor furniture

Description
E-700-3 Pro curve edge banding and trimming machine is engineered for efficient, flexible processing of straight and curved panels. It integrates an upper gluing pot with Teflon coating to reduce glue buildup and simplify maintenance. The trim-adjustment-free configuration supports panel thicknesses from 14 mm to 70 mm and adapts to diverse production conditions. The automatic auxiliary feeding system and adjustable speed control enable stable banding on circular, oval and irregular panels, with facilitated rotation at corners.

Short details

• Price range: $15,000 – $20,000 (as listed)
• Brand: Blue Elephant
• Model: E-700-3 pro
• Panel Thickness: One-side trimming: < 14 mm; Top and bottom trimming: 14-70 mm
• Category: Edge Banding Machine
• Supply Ability: 400+ Units in Stock
• After-sale Service: Free Lifetime Technical Support online; Overseas service available
• Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)

Features

• PUA/EVA upper gluing pot with one-touch glue discharge for fast switching between adhesives and reduced residue
• Auxiliary automatic feeding suited for round, oval and rounded-corner rectangular panels to free operator handling
• Secondary auxiliary pressing roller provides double pressing to enhance bonding strength between edge and panel
• Photoelectric sensor detects panels automatically; machine stops rotation if no material is detected for 5 seconds
• Machine head rotates 15° to improve compatibility with varied panel geometries

Parameters
Model: E-700-3 pro
Size: 1870 x 1400 x 1530 mm
Weight: 530 kg
Voltage: 380V, 50Hz, 3Ph
Total power: 6.5 kW
Connection method: Mechanical docking error ±0.6 mm
Edge strip width: 14-70 mm
Edge strip thickness: 0.5-3 mm
Edge sealing speed: 0-30 cm/s
Profiling speed: 0-24 cm/s
Trimming: One-side trimming: < 14 mm; Top and bottom trimming: 14-70 mm
Inner arc radius: ≥20 mm (4 mm sealing radius for special operation)
Glue type: EVA/PUR
Glue pot capacity: 2600 ml
Air tank capacity: 2 L

Application
Edge banding machines are used to apply and finish edge material on a wide range of wood-based panels for furniture production: cabinets, wardrobes, shelves, custom furniture, office furniture, tables, chairs, windows, doors and other wood products.

Optional parts

• Air Compressor
• Conveyor Belt System
• Heating Lamp
• Laser Edge Banding
• Pre-melting Device
• PUR Glue Machine
• Side Drilling
• Upper Glue Pot

Technical specifications

• Model: E-700-3 pro
• Dimensions: 1870 x 1400 x 1530 mm
• Net weight: 530 kg
• Power supply: 380V, 50Hz, 3-phase
• Total installed power: 6.5 kW
• Edge strip width supported: 14-70 mm
• Edge strip thickness supported: 0.5-3 mm
• Trimming range: one-side < 14 mm; top & bottom 14-70 mm
• Sealing speed: up to 30 cm/s; profiling speed up to 24 cm/s
• Glue types supported: EVA and PUR; glue pot capacity 2600 ml
• Inner arc radius capability: ≥20 mm (special 4 mm sealing radius operation)
• Connection accuracy: mechanical docking error ±0.6 mm
• Air tank capacity: 2 L
