Automatic edge-banding machine F351

for woodfor panelsfor furniture

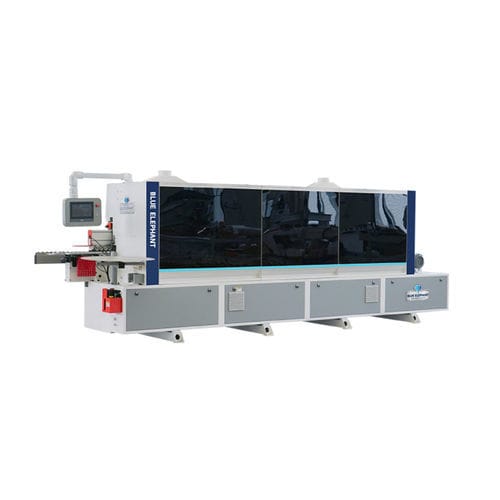

Product Overview: F351 automatic bevel straight edge banding machine is equipped with multiple functions including milling unit, edge band slotting, gluing, pressing, end cutting, rough and fine trimming, scraping, and buffing. The edge sealing effect is beautiful, delicate, and smooth. Features: - The F351 bevel straight edge bander can band straight edges, bevel edges, and bevel-straight edges, offering full functionality and excellent edge finishing. - One-click switching between edge banding types for simple and efficient operation. - Top-mounted glue pot for convenient gluing, cleaning, and maintenance. - Equipped with high-power jump cutter trimming, with two 8.5kW high-speed milling motors for edge banding on all four sides. Parameters: - Model: F351 - Voltage: 380V, 50Hz 3phase - Air pressure: 0.6-0.8Mpa - Hot melt adhesive: PUR, EVA - Edge strip width: 14-70mm - Edge strip thickness: 0.5-2mm - Plate thickness: 14-25mm (bevel mode), 14-40mm (straight mode) - Side strip material: PVC, wood skin (customized) - External dust collection: Ø150mmx2 - Device size: 550x110x190cm (L*W*H) - Weight: 2130kg - Total power: 30.3kW - Glue pot temperature: 110℃-210℃ - Glue pot capacity: 2600ml - Plate size: ≥250*150mm - Sealing edge shape: Bevel straight edge, Pure slant, Straight edge - Slot height: 3-23mm - Straight side length: ≥5mm - Feeding speed: 12m/min - Air Tank Volume: 5L Application: Edge banding machines are mainly used for banding the edges of various panel furniture, such as cabinets, wardrobes, shelves, custom furniture, office furniture, tables, chairs, windows, doors, cupboards, and other wood products. FAQ: - What materials can be banded by the edge banding machine? This CNC edge banding machine can process materials such as medium density fiberboard, blockboard, solid wood board, particle board, polymer wood board, plywood, etc. - If I have never used an edge banding machine before, will I be able to figure it out? Blue Elephant provides lifetime technical assistance and access to training videos for hands-on experience. - Does this machine have a limit on the wooden panel thickness? Yes. For bevel edge, panel thickness is 14-25mm; for straight edge, panel thickness is 14-40mm. Customer Reviews: - Michael Turner (Canada): “We’ve been using the F351 for over three months, and it’s been outstanding. The machine handles both straight and bevel edges with perfect precision. The one-click switch between edge types really saves time, and the finishing quality is excellent. Highly recommended for cabinet manufacturers!” - Ahmed Al-Farhan (Saudi Arabia): “The F351 is a reliable and efficient machine. Installation and training were smooth, and our operators learned quickly. The glue pot design makes cleaning easy, and the high-speed milling motors deliver a flawless edge on all sides. Great performance and build quality!” - Sofia Morales (Spain): “We replaced our old edge bander with the F351, and it was a big improvement. The machine works fast, is easy to operate, and produces beautiful edge finishes. I also appreciate the strong suction and precise trimming—great value for the price.” - Jason Miller (United States): “Our furniture workshop has been running the F351 daily, and it hasn’t disappointed. Switching between bevel and straight edges takes seconds, and the four-side edge banding capability really boosts productivity. Excellent machine and great after-sales support from the manufacturer!” Technical Specifications (Summary): - Model: F351 - Voltage: 380V, 50Hz 3phase - Air pressure: 0.6-0.8Mpa - Hot melt adhesive: PUR, EVA - Edge strip width: 14-70mm - Edge strip thickness: 0.5-2mm - Plate thickness: 14-25mm (bevel), 14-40mm (straight) - Side strip material: PVC, wood skin (customized) - External dust collection: Ø150mmx2 - Device size: 550x110x190cm - Weight: 2130kg - Total power: 30.3kW - Glue pot temperature: 110℃-210℃ - Glue pot capacity: 2600ml - Plate size: ≥250*150mm - Sealing edge shape: Bevel straight edge, Pure slant, Straight edge - Slot height: 3-23mm - Straight side length: ≥5mm - Feeding speed: 12m/min - Air Tank Volume: 5L
