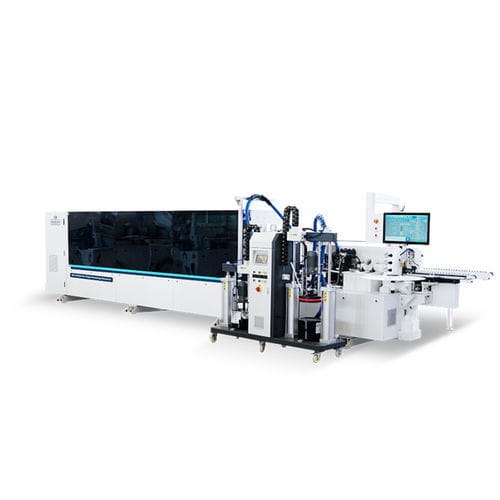

Automatic edge-banding machine S-600

for woodfor panelsfor furniture

Overview
The S600 heavy duty narrow board all-around edge bander is an integrated edge-banding machine engineered for high-volume processing of narrow panels and furniture components. It combines a rigid steel-beam structure with precision feeding and a multi-station finishing line to ensure consistent edge results suitable for industrial production.

Key features

• Integrated 300 mm steel beam and rail-integrated frame for structural rigidity and long-term positional accuracy.
• Large gantry machining center and precision-machined transport structure to maintain straightness during panel handling.
• Heavy-duty pressing wheel assembly with offset six-wheel pressure system to improve adhesive bonding.
• Integrated production flow with independent spraying, pre-milling, dust cleaning and panel heating stations.
• Servo-controlled precision edge feeding and dual-motor end-cut avoidance for reliable handling of narrow boards.
• Sequential finishing stations: rough trimming, fine trimming, four-motor tracking & rounding, scraping, flat scraping and multi-stage buffing.
• Multiple optional process upgrades: electronically adjustable spot laser, glue tank heating, dual-color PUR gluing, edge preheating and additional glue-heating modules.

Optional parts

• Air compressor for edge bander
• Conveyor belt system
• Heating lamp
• Laser edge banding module
• Pre-melting device
• PUR glue machine
• Side drilling unit
• Upper glue pot

Applications

• Designed for edge banding of panel furniture components: cabinets, wardrobes, shelving, custom furniture, office furniture, tables, chairs, windows, doors, cupboards and other wood-based products.

Technical specifications

• Model: S600 Heavy Duty Narrow Board All-around Edge Banding Machine
• Narrow end of work piece (Min.): 40 mm (minimum length not less than 150 mm at the narrow end)
• Narrow edge of work piece (Min.): 40 mm (minimum length not less than 300 mm on the narrow edge)
• Minimum work piece length: 120 mm
• Minimum work piece width: 40 mm
• Total power: 22 kW
• External dimensions: 8080 × 1115 × 1864 mm
• Sealing tape thickness: 0.4 – 3 mm
• Sealing width: 11 – 65 mm
• Panel thickness: 8 – 60 mm
• Conveyor speed: 18 – 25 m/min
• Air pressure: 0.6 MPa
• Weight: 5400 kg

Supply & service

• Supply ability: 400+ units in stock
• After-sale service: Free lifetime technical support online; overseas service available
• Payment terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
