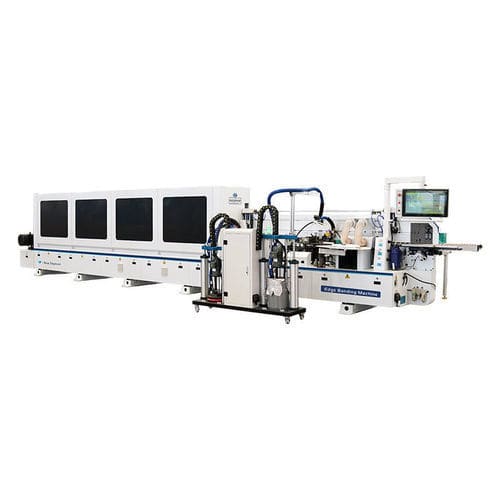

Automatic edge-banding machine E-90

for woodfor panelsfor furniture

Product Overview:E-90 aluminum-wood edge banding machine is equipped with separating agent, pre-milling, PUR glue pot + dual-color gluing system, specialized belt pressing, rough trimming, fine trimming, split double-track end cutting, four-motor profile tracking, scraping, flat scraping, cleaning, and double buffing functions. It is suitable for edge banding processing of various types of aluminum honeycomb furniture, PET, MDF, blockboard, solid wood board, particle board, polymer door panels, and plywood. The edge banding results are delicate, smooth, straight, and provide an excellent touch and finish.Features:The edge banding machine uses a PUR dual-color gluing system with a fully enclosed design. It requires no cleaning, applies glue automatically, and allows one-click two color switching.The edge bander uses a combination of steel wheel, rubber wheel, and belt pressing. This ensures strong adhesion, smoother edges, and prevents gaps or lifting.It adopts a split double-guide end cutting system. It trims edges precisely, works efficiently, and avoids panel chipping.The machine is equipped with two buffing units. The cotton wheels remove excess glue and make edges and panels smoother and cleaner.Parameters:ModelE-90Machine weight4250kgOverall size (L×W×H)9800*900*1750mmTotal power23kwWorking pressure0.6MpaFeed speedLow 16m/Medium 18m/High 22m/minPanel width≥60mmPanel thickness9mm, 60mmPanel length≥60mm≤2400mmEdge banding thickness≥0.4mm, ≤2.0mmApplication:The E-90 edge banding machine is suitable for edge banding processing of various types of aluminum honeycomb furniture, PET, MDF, blockboard, solid wood board, particle board, polymer door panels, and plywood.FAQ:What materials is this edge banding machine suitable for? It is suitable for edge banding of solid wood board, polymer door panel, plywood, PTP, medium density fiberboard and other boards.What's the thickness of the edge banding machine? Any edge band with the thickness between 0.4mm to 2mm can be used to band edges.How to deal with the exceeded glue during the banding process? Our automatic edge banding machines have rough trimming, fine trimming, and polishing functions. All these functions help to trim and polish the edges to remove the exceeded glue.Customer Reviews:John Miller (America): The E90 edge banding machine exceeded our expectations. The PUR dual-color gluing system is efficient and easy to operate. Our production speed has increased, and the edge finish is smooth and flawless.Maria González (Spain): We are very satisfied with the E90 Aluminum-Wood Edge Banding Machine. The trimming and polishing functions work perfectly, and the machine runs stably even under heavy workload. Excellent quality and great value.Matej (Slovenia): We have tested the machine, it’s working properly. We are planning to purchase the second one. Thanks very much.Ahmed Hassan (Egypt): The E90 edge bander is very reliable. The dual polishing system makes the edges clean and smooth. It saves us both time and material, and the overall performance is outstanding.Technical Specifications:Brand: Blue ElephantModel: E-90Panel Thickness: 9mm~60mmCategory: Edge Banding MachineSupply Ability: 400+ Units in StockFunction: Double glue pots, pre-milling, gluing, pressing, end cutting, rough trimming, fine trimming, tracking and rounding, double scraping, flat scraping, double buffingAfter-sale Service: Free Lifetime Technical Support online, Overseas servicePayment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
