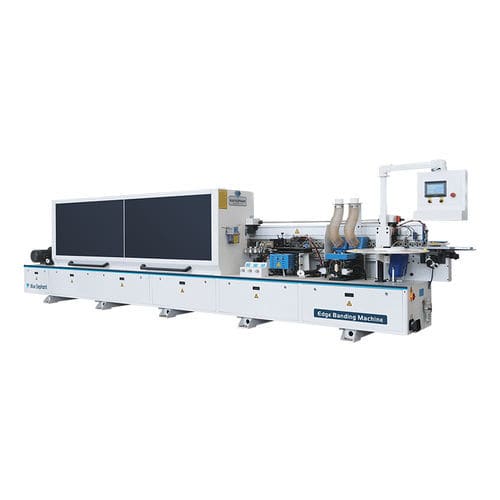

Automatic edge-banding machine E-70J

for panelsfor furniturefor wood

Price: $25,000 – $30,000 - Brand: Blue Elephant - Model: E-70J - Panel Thickness: 9mm-60mm - Category: Edge Banding Machine - Supply Ability: 400+ Units in Stock - Function: Pre-milling, gluing, pressing, end cutting, rough trimming, fine trimming, tracking and rounding, scraping, buffing, separating agent (optional), cleaning (optional) - After-sale Service: Free Lifetime Technical Support online, Overseas service. - Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards) Product Details: The E70J automatic edge banding machine offers pre-milling, gluing, pressing, end cutting, rough trimming, fine trimming, tracking and rounding, scraping, buffing, separating agent (optional), and cleaning (optional). It is widely used in the wood furniture industry, including panel furniture, custom furniture, cabinets, wardrobes, and office furniture. Features: - Pre-milling flattens cutting edges and removes residue for more even glue application and thinner glue lines. - Fast glue melting reduces waiting time, improving efficiency and saving time. - Multi-point pressure ensures tighter adhesion between edge band and panel. - End cutting accurately removes excess edge band at panel ends. - Rough and fine trimming levels top and bottom edges, keeping the band perfectly parallel to the panel. Parameters: - Model: E-70J - Machine weight: 2400kg - Overall size (Length×width×height): 6720×960×1600mm - Total power: 17KW - Working pressure: 0.6Mpa - Feed speed: Low 16/Mid 18/High 23m/min - Panel width: ≥60mm - Panel thickness: 9mm-60mm - Panel length: ≥60mm (No milling), ≥200mm (Pre-milling) - Min. size (Width×length): 60×60mm/150×200mm (Pre-milling) - Tape thickness: 0.4mm-3mm Optional Parts: - Uper Glue Pot - Side Drilling - PUR Glue Machine - Pre-melting Device - Laser Edge Banding - Heating Lamp - Conveyor Belt System - Air Compressor Application: The automatic edge banding machine is suitable for MDF, blockboard, solid wood, particleboard, polymer door panels, and plywood. It delivers smooth, fine, and seamless edge finishes with an excellent feel. Ideal for medium and large furniture manufacturers producing cabinets, wardrobes, and other panel furniture. FAQ: - What materials can be banded by the edge banding machine? This bander machine can process materials such as MDF, solid wood board, particle board, polymer wood board, plywood, etc. - Does this machine have a limit on the wooden panel thickness? Yes. Its processing range is 9mm-60mm. - What is pre-milling? The diamond pre-milling cutter mills the ripple traces of the wooden board caused by the spiral trimming knife and the excess burrs, making the edges more bonded by the edge, and the bond is more secure and more beautiful. Pneumatic pre-milling, more accurate, more convenient. Customer Reviews: - John Smith (America): The edge banding machine works flawlessly. It’s fast, precise, and really improved our production efficiency. Highly recommended! - Maria Lopez (Spain): Great machine with smooth glue application and accurate trimming. Very happy with the quality and support from the manufacturer. - Matej (Slovenia): This automatic edge bander saved us a lot of labor and time. Easy to operate and the finish is perfect every time. - Ahmed Hassan (Egypt): Excellent value for money. The machine is sturdy, precise, and the pre-milling function ensures perfect edges. Our workshop loves it. Technical Specifications: - Model: E-70J - Machine weight: 2400kg - Overall size: 6720×960×1600mm - Total power: 17KW - Working pressure: 0.6Mpa - Feed speed: Low 16/Mid 18/High 23m/min - Panel width: ≥60mm - Panel thickness: 9mm-60mm - Panel length: ≥60mm (No milling), ≥200mm (Pre-milling) - Min. size (Width×length): 60×60mm/150×200mm (Pre-milling) - Tape thickness: 0.4mm-3mm
