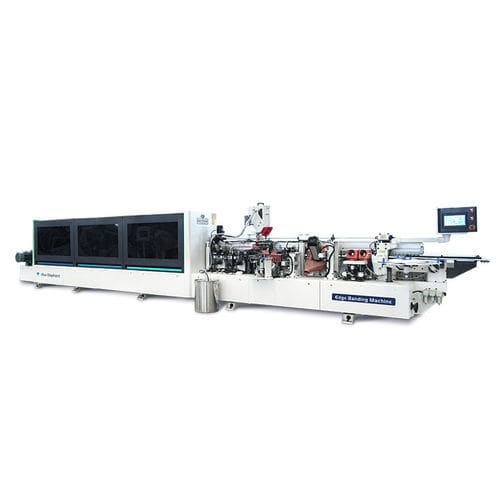

Automatic edge-banding machine 783J

for woodfor panelsfor furniture

This integrated bevel-and-straight edge banding machine enables rapid switching between conventional straight edge and 45° bevel edge banding while combining all essential processing steps for high-quality panel furniture finishing.

Features

• Two functions in one machine: fast switch between bevel and straight edge banding.
• Electric beam lifter to reduce labor and improve setup accuracy and efficiency.
• Panel heating unit to pre-heat board surface in low-temperature conditions for better adhesive activation and improved edge sealing.
• Continuously moving buffing wheels to prevent localized wear and hardening, extending service life.
• High-efficiency hard-tooth-surface conveyor reducer providing powerful, reliable feeding.

Parameters

• Overall size (L × W × H): 9900 × 960 × 1750 mm
• Total power: About 34 kW
• Lifting: Electric beam lifter
• Edge thickness: Bevel edge 0.6–1.2 mm; Straight edge 0.4–3 mm
• Panel thickness: Bevel edge 15–25 mm (vertical surface 5 mm, 8 mm); Straight edge 10–60 mm
• Panel length: ≥150 mm
• Panel width: ≥200 mm
• Minimum processing size: 150 × 200 mm
• Feed speed: Bevel edge 14 m/min; Straight edge 14 m/min, 20 m/min, 23 m/min (selectable)
• Working pressure: 0.6 MPa

Technical features / specifications

• Integrated processing chain: pre-milling, gluing, pressing, end cutting, rough/fine trimming, scraping, and buffing for tight joints and chip-free edges.
• Intelligent control system with monitoring, inverter fault-code display and automatic counting for simplified operation and maintenance.
• Suitable for a wide range of panel materials including MDF, blockboard, solid wood board, particleboard, polymer wood board and plywood.
• Supply ability: high (product family indicates 400+ units in stock).
